SunFolder 120Wp foldable solar module
SUNFOLDER 120WP FOLDABLE SOLAR MODULE

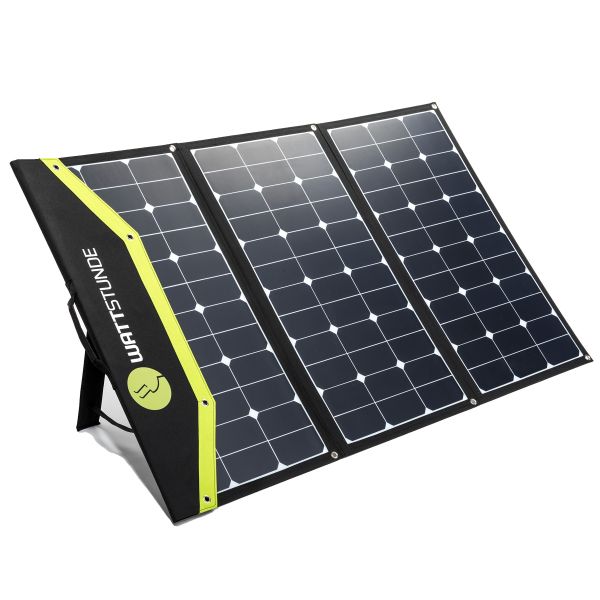

Light, modern and usable everywhere - thanks to its innovative design, the WATTSTUNDE SunFolder solar bag is very light, space-saving and offers a high degree of flexibility and usability. The solar bag scores with the possibility of being freely adjustable at any time. Whether behind the windshield when just parked or outdoors, you can use the solar bag wherever the sun shines.
The SunFolder solar bag from WATTSTUNDE has a 5 m plug & play connection cable with a handy plug-in system, including an Anderson plug-in system at the end. Due to this good composition, the connection can be permanently attached to the charge controller. If necessary, the solar bag is taken out, hung or placed in the sun and you plug the two Anderson mating plugs together: The SunFolder is already connected to the charge controller. It could hardly be faster or more practical.
In addition, the WATTSTUNDE SunFolder have high-quality modules with SunPower Back-Contact solar cells, which deliver optimal results by enabling a high energy yield.
The solar bags are suitable for all self-sufficient battery applications, e.g. in travel and mobile homes, camping and tents, marine sailing boats, camper vans, vans and in all off-grid systems.
Application note:
No moisture or water should get into sensitive areas - therefore do not leave it outside overnight and protect the module from rain and mist.
Interesting details
♦ back contact SunPower solar cells♦ cell efficiency over 22%
♦ ETFE foil with high elasticity and durability
♦ splash-proof thanks to durable Condura fabric
♦ extremely light and space-saving
♦ with Anderson connector
♦ wide range of uses due to high flexibility

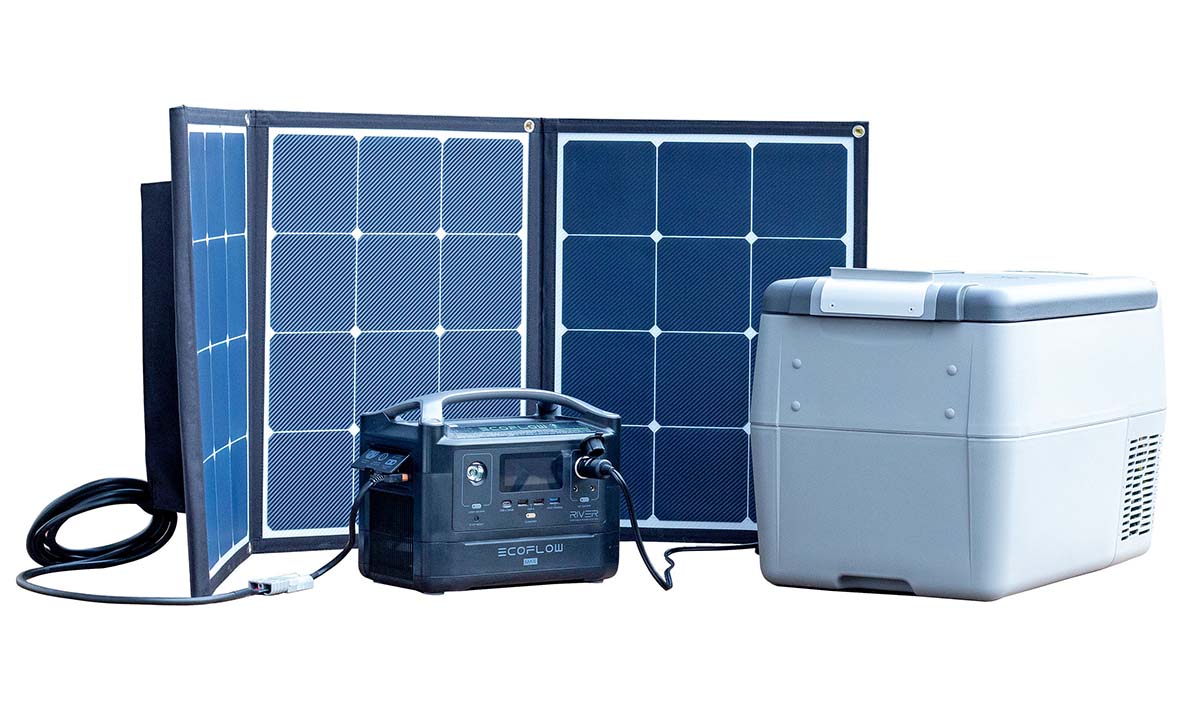

♦ can be easily combined with EcoFlow RIVER MAX power station (lithium battery)
(optionally available in dropdown: adapter cable between solar module and power station)
Model
Wattstunde WS120SF SunFolder 120Wp solar bag
Dimensions
shut: width 560 mm, length 440 mm, height 22,5 mm
open: width 560 mm, length 1320 mm, height 7,5 mm
Weight
3,3 kg
Electrical details
- module type: 12V module
- nominal power (Pmax): 3 x 40 Wp
- Ø daily yield (summer): 720 Wh/d
- voltage (Umpp): 20.88V
- current (Imp): 5.97A
- open Circuit Voltage (Uoc): 24.64V
- short Circuit Current (Isc): 6.32A
Operating manual solar bag SunFolder WS120SF
