THE VANESSA ARCO SYSTEM WITH HEAVY-DUTY PULL-OUT - THE SOLUTION FOR SPORTS, KITCHEN AND STORAGE SPACE IN THE VW AND MERCEDES
The VanEssa Arco system offers a great deal of storage space and maximum flexibility - specially developed for anyone with high space and flexibility requirements.
It is suitable for vehicles
-
without rear seats
-
or with up to one row of seats (only single seats for Mercedes)
Requirement: original Volkswagen or Mercedes rail system or floor panel (see below in installation instructions)
Alternative:
- Volkswagen Transporter/Caravelle VanEssa floor panel short wheelbase or VanEssa floor panel long wheelbase
(only possible without seats) - Mercedes with rail system and side plastic panelling in the rear only possible behind passenger seat
- VW T7 Multivan only possible behind passenger seat, no second pull-out possible behind driver
- Original Mercedes sleeper bench is not compatible
Overview and advantages

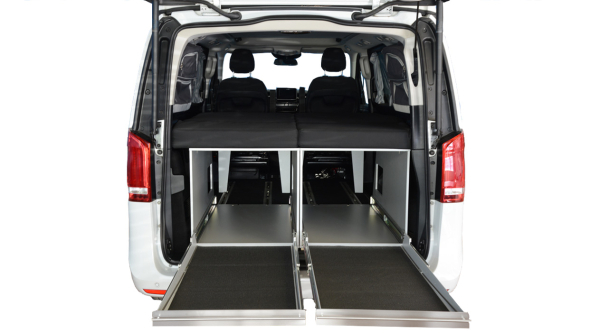

- 250 kg soft full extension (heavy-duty pull-out)
- Arco system possible on the right and/or left in the rail system of the vehicle rear (in the VW T7 Multivan only behind the passenger seat)
- Single bed, alternatively double bed extension (optional via drop-down, also possible at a later date)
- Highest lying comfort on VanEssa COMFORT mattress
- Extendable with modular high-quality, well-organised and fully equipped kitchen (equipment see below, optional by dropdown)
- Kitchen can be flexibly disassembled/assembled from the heavy-duty pull-out at any time
- Alternative to the kitchen: storage module with three generous drawers
- Through-loading facility for bulky, long items such as bicycles, kiteboards etc.
- Very easy assembly and disassembly of the sleeping system
- Maximum flexibility
Scope of delivery
Basic
Top Sink
Cooker
Cool box (if chosen in dropdown)
Storage drawers
- Arco tunnel with heavy load drawer
- Sleeping board(s) with integrated support panel
- Single mattress(es), 3-piece: á width 72 cm, length 189 cm, height 10 cm
VW T7 Multivan: single mattress(es), 3-piece: á width 68 cm each (tapered to 60.5 cm at the rear), length 189 cm, height 10 cm - Tunnel with heavy duty pullout:
250 kg soft full extension with sheet metal tray
With two lateral automatic push-back stops - All fixings included
Exception: fixing clips for original rail system VW T7 not included in delivery - optionally 2 pieces available as accessory (via dropdown)
Variants
Arco-Channel equipped withmodular kitchen (optional via Dropdown)
- 3 storage drawers (2 high, 1 low), secured with push locks
- with folding table
Top Sink
- Two washing-up bowls
- Pumping system with 13 ltr. water tank (ready for plug-in; working with power supply from car battery)
For the sink and cooler must be a 12V-outlet in your van at the appropriate location. - Possibility to store washing-up utensils or a showering top below the removable washing-up bowl
Cooker
- Equipped with portable gas stove (removable; no gas acceptance test required) including cartridge
Cool box (if chosen in dropdown)

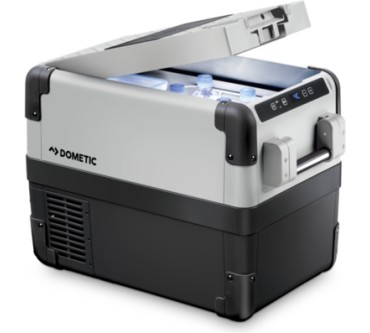

- Dometic compressor cool box CFX28" compressor cooler, 28 Liter., 12-230 Volt (h/d/l) 425 x 342 x 550 mm
The basic version of the Arco system does not include a mounting option for a cool box, only if you select our Dometic CFX-28 cool box. If you already possess this cool box, an adapter plate for mounting can be ordered as a supplement (optional, by dropdown). - Variant: cool box pull-out in the interior for direct access in the rear (optional, by dropdown)
Storage drawers
- Storage space for food supplies, dishes, pots, pans, etc.
- On 40 kg soft full extension slides
- Drawers are already equipped with anti-slip mats
Storage modul on Arco tunnel as an alternative to the kitchen (optional via dropdown)
- 3 generious storage drawers (1 high, 2 low), secured with gesichert mit push-locks
- ideal, if organized storage space is desired instead of a kitchen
Materials and finish
Material
Poplar plywood with CPL-coating
VanEssa care and cleaning instructions "furniture"
VanEssa product and care info "mattress"
Pull-outs
Quality Blum full-extension runners with soft-close function
Fittings
High-quality furniture fittings (soft pull-outs, elegant push locks with facing rosettes, hinges, etc.)
Weight
Tunnel with heavy load drawer: about 70 kg
Kitchen: about 35 kg
Storage module: follows shortly
Poplar plywood with CPL-coating
VanEssa care and cleaning instructions "furniture" VanEssa product and care info "mattress"
Decor fronts
Premium design (for a small surcharge): Matt black in CPL, Swiss, Bulli and Wildoak wood finishes in HPL (selection in drop-down menu)Pull-outs
Quality Blum full-extension runners with soft-close function
Fittings
High-quality furniture fittings (soft pull-outs, elegant push locks with facing rosettes, hinges, etc.)
Technical details
Dimensions
Arco tunnel with heavy load drawer: width 60 cm, depth at the bottom 116 cm, depth at the top 102 cm, height 56 cm
Inner volume: width 52,5 cm, depth 107,5 cm, height 52,5 cm
Inner volume: width 52,5 cm, depth 107,5 cm, height 52,5 cm
Kitchen: width 52,5 cm, depth 72,5 cm, height 41,5 cm
Double bed extension: clear height VW 55 cm / Mercedes 56,5 cm
Double bed extension: clear height VW 55 cm / Mercedes 56,5 cm
Storage module: follows shortly
Weight
Tunnel with heavy load drawer: about 70 kg
Kitchen: about 35 kg
Storage module: follows shortly
