Kitchen module Oslo
TOP

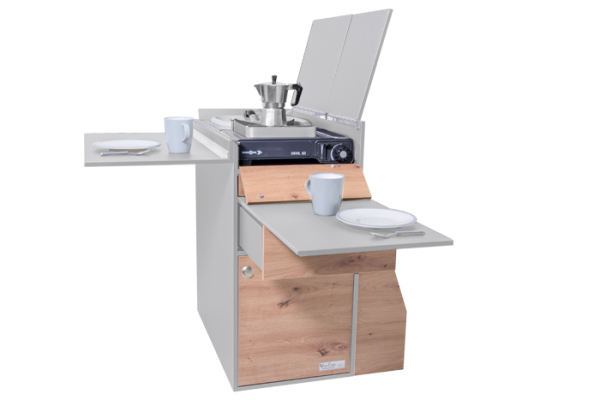

The VanEssa module Oslo as kitchen with fresh and waste water tanks
- with handy USB plug to load your mobile phone or other devises -- special offer for combination purchase with powerful compressor cooler (dropdown) -. -
The cupboard with a sink, a gas cooker and a cool box serves as an alternative to the VanEssa kitchen system in the boot of your van.
A big advantage is that you can stay and cook inside of your van when the weather is bad. The kitchen is perfectly suitable for our sportive customers who are in need of more storage space to load long objects (surfboards, snowboard, kite...) and as well for customers which are on the road the whole year around or rather travel in the northern directions.
Behind the module closet you still have room for a large bed. It is very suitable in combination with a VanEssa sleeping system and a rotary seat for the passenger seat.
Even with built up bed all functions of the module stay maintained, all drawers, cool box (alternatively camping toilet) are accessibly at any time.
Cool box and pumping system work with just one 12V-plug, which should be placed behind the driver´s seat.
The spacious table areas allow up to four persons to sit, eat, play or use the laptop comfortably. You can perfectly use the foldable table for your laptop or as table for a meal. Folded on top is serves as cover / working surface.
With this kitchen module it is possible (in many countries) to register the vehicle as camper. Please ask for advise at our local licensing authority.
In contrast to the T3 interior module the kitchen module also contains a waste water tank besides a fresh water tank, a fixed foldable table, splash protection and a blind for the tanks.
Attention: For fastening the oslo in a Transporter & Caravelle a floor plate is needed.
Details
The module is not suitable for the T6.1 Beach Camper with inner kitchen.Please send us a picture by Email or with image upload of the area behind the drivers seat of your van: hres Vans oder per Bild-Upload for following vehicle types:
Opel Vivaro / Renault Trafic / Nissan NV300 / Mercedes V-Klasse, Viano, Vito
For Citroen Jumpy II / Fiat Scudo II / Peugeot Expert II / Toyota Proace I shipping is not possible, first installation only with pickup.
Mercedes vans only need an adapter plate in following case:
If the vehicle has the triple bench and simultaneously roll slides (für Beispielbild hier klicken) for the single seats. If there are only gliding carriages at that place you do not need an adapter plate.
You can choose the adapter plate in the dropdowns.
The module is fastened behind the driver´s seat on existing fixation points. There is no adaptation on the car.
Installation and removal only takes a few minutes.
Following Dropdown options have to be selected when ordering:
- desired decor
- lower drawer:
- with cool box drawer: empty drawer, suitable for very powerful compressor cooler
- with toilet function: incl. camping toilet Dometic 976 and flap for flush cut into drawer front
(cool box or storage insert can still be used instead of the toilet)
- cool box: optional addition of compressor cooler, approx. 30 ltr., 12-230 Volt
- storage insert: optional addition of storage insert in order to use the drawer for clothes, etc.
Cool box
Only the compressor cooler, approx. 30 ltr., 12-230 Volt, fits in the lower drawer.
Measurements
module closet: width 40 cm, depth 70,5 cm, height 84,3 cm
folding table: width 39 cm, depth 70,5 cm
blind for tanks: width 17 cm, height 67,3 cm
Weight
35 kg (without cool box)
Decors
Our standard decor is Silver grey. Anthracite, our noble design Black mat finish and the wood designs Swiss and Bulli are available against little surcharge (please select in dropdown).
Lower drawer
- big softclose drawer prepared for compressor cooler, approx. 30 ltr., 12-230 Volt
(also available as toilet drawer or with storage insert, choose in dropdown) - two push locks on the lower drawer for additional security due to higher weight
- with automatic lateral return stop
Middle drawer
- capacious storage drawer
- with manual return stop
- extending table (drawer can be used as support for the table)
Upper drawer
cutlery drawer (cutlery bin already included)
At the top
- rinsing drawer with pumping system (ready for plug-in; working with power supply from car battery)
- 2 washing-up bowls (1 closed, 1 with wastewater system into tank)
- lateral folding table
- splash protection cover
- portable gas stove, anthracite (removable; no gas acceptance test required)
- At the side (between kitchen module and driver´s seat):
- fresh water tank (10-16ltr. depending on vehicle type) with pumping system and combined 12V plug
- waste water tank (10-16ltr. depending on vehicle type)
- blind for tanks
Fixation
Fixation behind the driver´s seat in rail-system, to lashing eyes, etc. (fixation material included in delivery)
A 12V power socket ist needed behind the driver seat for the usage of the Oslo kitchen module .
The cable for the 12V connection is supplied ready to plug in (a combined 12V plug for cool box and for water pump, thus only one 12V power socket is necessary to use the module in the van)
Installation
Oslo - VW T5 / T6 / T6.1 Multivan / Beach
Oslo - VW T5 / T6 / T6.1 Transporter / Caravelle
Oslo - Mercedes with rails
Oslo - Mercedes with new rail system
Oslo - Opel B life / Renault Trafic III Spaceclass
Oslo - Opel Vivaro A, B / Renault Trafic II, III / Nissan Primastar, NV300 / Fiat Talento
Oslo - Citroen Spacetourer XL / Traveller L3 / Proace Verso L2 / Opel Zafira life L
Installation guide Oslo Ford Tourneo / Transit Custom KR / LR - follows
VanEssa care and cleaning instructions furniture
