INTERIOR KITCHEN MODULE OSLO BY VANESSA -
COOK IN YOUR DAILY VEHICLE WHATEVER THE WIND AND WEATHER.
Transform your van into a camper in just a few minutes and remain completely independent of restaurants - and sunshine.
The ready-to-use Oslo kitchen module for the rear of the vehicle fulfils all your wishes and offers everything you need for cooking, cooling, washing up and stowing away.
Two integrated tables also provide stable, space-saving eating and working/storage space while you take a break with your camper.
Your van remains an everyday vehicle that can be converted into a motorhome as needed.
Overview and advantages
- Self-sufficient modular tower with fully equipped kitchen
- Cooking in the vehicle protected from wind and weather
- Organised storage of crockery, food etc.
- 2 tables with generous storage space for up to 4 people
- Can be extended at any time with useful accessories such as compressor cooler, barbecue attachment and shower hose with integrated water stop, camping toilet (optional)
- Complete load-through space for bulky and long objects possible, depending on seat configuration
- Can be combined with VanEssa sleeping systems (see sleeping systems/your vehicle model) or, if applicable, with existing bench seat, folded out to form a bed
- All drawers, cooker, sink, cool box or camping toilet are accessible at all times, the passage to the driver's/passenger's seat remains largely free.
- Very easy installation and removal of the kitchen module in a few minutes
- Van can be converted into a motorhome in combination with Oslo*.
Assembly
- Delivered as a complete unit
- Slide the Oslo kitchen module into the vehicle
- Fixing to the existing mounting system of the vehicle with only two screws (if necessary, additions such as vehicle floor, adapter plate etc., see below and installation instructions)
Scope of delivery and equipment
Sink unit- 2 sink bowls (one closed and removable, one with drainage system to waste water tank)
- Fresh water tank (10-16 litres, depending on vehicle type) with inlet fitting, mounted ready to plug in; runs via pump system and combined 12V plug from the car battery
- Waste water tank (10-16 litres, depending on vehicle type)
- Both water tanks are stowed behind a panel between the kitchen module and the driver's seat, accessible at all times.
- Condition for use of sink and cool box: 12V socket, ideally directly behind driver's seat; must already be available
- Shower attachment available on request (accessory)
Cooking station
- Mobile cartridge cooker with safety fuse (removable; no gas extraction required)
- 1 gas cartridge included
- Splash guard lid, can be folded open in two, each above cooker/sink set
- Windbreak for gas cooker included
- Available with grill attachment on request (accessory)
Cutlery drawer
- Plenty of space for cutlery, spices etc. (cutlery tray already included)
Cooler box/toilet drawer
Large full-extension drawer (bottom), prepared for
- Very powerful compressor cooler, approx. 30 ltr., 12-230 volts
- With 2 push-locks as additional security due to the weight of the cooler/WC
- With automatic side push-back lock
- Pull-out with stable base without side/rear walls
- On 40 kg soft full-extension runners
Alternative to cool box pull-out:
- Alternatively available as WC drawer or with storage compartment insert (selection by dropdown / cannot be retrofitted)
- Pull-out with WC function: flap in front for flushing; cool box or storage compartment insert can be used as an alternative instead of the toilet (optional by dropdown)
- Suitable camping toilet: Dometic 976 (optional via link)
- Alternative toilet (no cutout in front necessary): Composting toilet Trelino Evo M (optional on request)

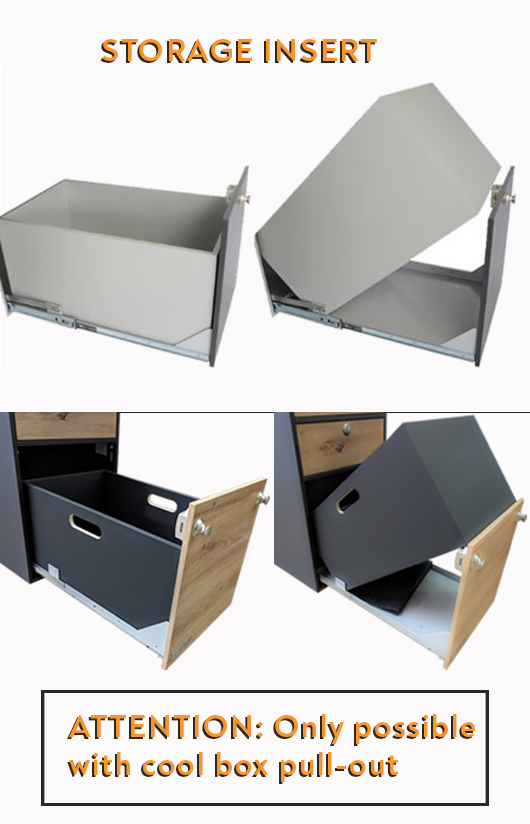

- Storage insert: insert with side walls for food, crockery, clothing etc. (optional by dropdown)
Storage drawer
- Spacious storage drawer as full extension (centre)
- Storage space for food supplies, crockery, pots, pans etc.
- With manual push-back stop on the side
- On 30 kg soft full-extension runners
Variants
Please note our information on the different (vehicle) variants with regard to shipping, collection, Mercedes adapter plate and the like!
VW Transporter and Caravelle:
A floor plate is required to attach the module
VW California Beach with 2-seater bench:
For the installation of a module behind the driver's seat, the original storage box must be shortened and moved to the rear. In addition, the original flexboard must be replaced or shortened by VanEssa rear board. The sleeping area is shortened to 184cm.
VW T6.1 Beach Camper with pull-out kitchen: Interior module is not suitable.
Mercedes: Adapter plate ONLY NEEDED if a 3-seater sleeping bench is installed in the vehicle and at the same time there are sliding slides (click here for example picture) for the single seats in the rail system behind the driver's seat. If there are sliding slides or no slides at this point, no adapter plate is required (per dropdown).
Opel Vivaro / Renault Trafic / Nissan NV300 / Mercedes V-Class, Viano, Vito: Please send us a picture of the area behind the driver's seat of your van or via picture upload
Citroen Jumpy II / Fiat Scudo II / Peugeot Expert II / Toyota Proace: Installation only on site, no shipping possible for the time being
Technical details
Carcase and drawers
12 mm poplar plywood, coated in graphite
VanEssa care and cleaning instructions furniture
Décor
Wild oak from HPL
Dimensions in cm
Module tower: W 40, D 70,5, H 84,3
Folding table: W 39, D 70,5
Water tank viewing panel: W 17, H 67,3
Weight: 35 kg (without cooling box)
Body and drawers: 12 mm poplar plywood coated with silver CPL
Pull-outs: Quality Blum full-extension runners with soft-close function
Fittings: High-quality furniture fittings (soft pull-outs, elegant push locks with facing rosettes, hinges, etc.)
12V connection
Combined 12V plug for both the cool box and the sink's submersible pump; this means that only one 12V plug on the B-pillar is needed in the car for the module.
* For motorhome registration, check with your TÜV or insurance company. Please note that various test centres do not generally recognise individual features such as the gas cartridge cooker or the quick-fixing with T-bolts.
