INDOOR KITCHEN FOR CAMPING IN ALL WEATHERS

Module with sink, gas cooker and cool box as a "small" alternative to the rear kitchen.

Advantage: Even in bad weather, you can cook inside the vehicle and enjoy your meal comfortably sitting at up to two integrated interior tables. The furniture is ideally combined with a swivel seat on the passenger side. In no time at all, a spacious interior is created in which up to four people can sit comfortably next to the cooking area.

The cupboard module can be flexibly and quickly fitted and removed.
A large bed area can be built up behind the modular tower, which is ideally fitted behind the driver's seat.

Your van remains an everyday vehicle that can be converted into a flexible motorhome as required with this modular furniture extension.


Overview and advantages

• 30 kg soft full-extension drawer (sink remains fully operable even when loaded or with top cabinet)
• Drawer with automatic anti-return device on the sides
• Possibility to store washing-up utensils or shower shower attachment under the sink bowl
• Two rinsing bowls and anti-slip mat
• Inlet set (mounted ready to plug in; runs on the car battery via pump system)

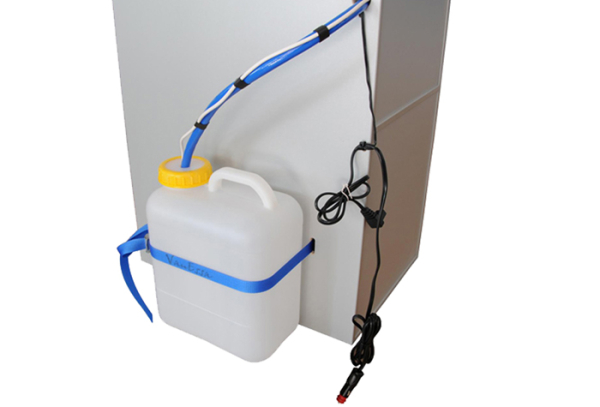

• 10-16 ltr. water tank (between modul tower and driver's seat), size depends on vehicle type

Middle drawer

• 30 kg soft full extension, storage drawer; incl. anti-slip mat

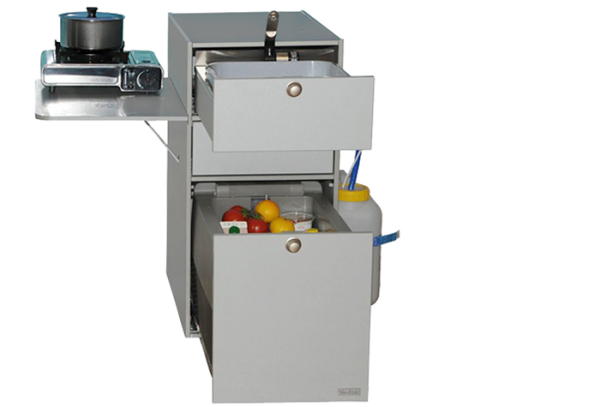

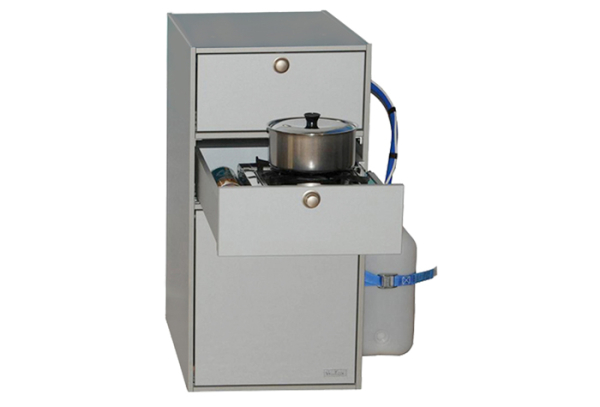

• Gas cartridge cooker (removable; no gas approval required) (optional via drop-down)

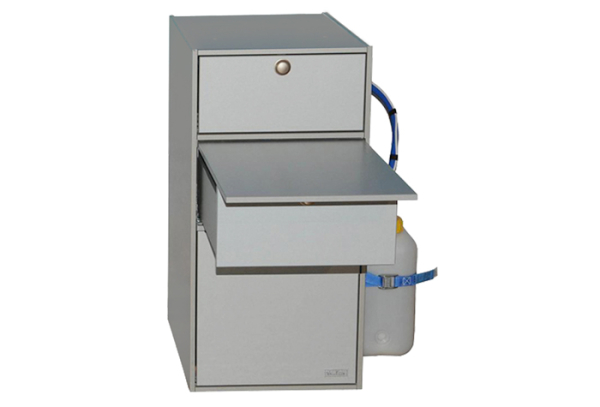

• Extendable table between middle and top drawer

Lower drawer

• 40 kg soft full-extension drawer, prepared for compressor cool box (bottom), prepared for very powerful compressor cool box, approx. 30 ltr., 12-230 volts
• With 2 push-locks as additional security due to the weight of the cooler/WC
• With automatic side push-back lock
• Pull-out with stable base without side/rear walls

Alternative to cool box pull-out

• 40 kg soft full-extension pull-out, prepared as closed pull-out for WC (optional via drop-down)
• also possible: preparation for compressor cooler
• also available with storage insert or food supplies, crockery, pots, pans etc. (optional by dropdown)
• Special offer for combined purchase with compressor cooler (optional by dropdown)
• with cool box AND toilet function incl. Dometic 976 camping toilet and flap in front for flushing PLUS preparation for compressor cool box (optional by dropdown)
• Alternative toilet (no WC function in flap necessary): portable camping dry separation toilet Trelino Evo M (optional on request)
• WC, cool box and storage insert can be used alternately in the module
• With two push-locks (additional securing of the pull-out due to the increased weight)
• Drawer with automatic lateral push-back lock

Further features

• Pull-out table, integrated between the two upper drawers; can be conveniently used from the swivel seat on the passenger side as a dining, work or play(e) table (swivel console for VW passenger seat in our shop)
• additional side hanging table possible; ideal for use from the seat in the rear, e.g. for using a laptop or as a second table for a meal for another person (optional via dropdown)
• Specially developed hanging table available especially for the original VW retaining rail Camp table in the Volkswagen Beach or Startline hanging table (optional by dropdown)

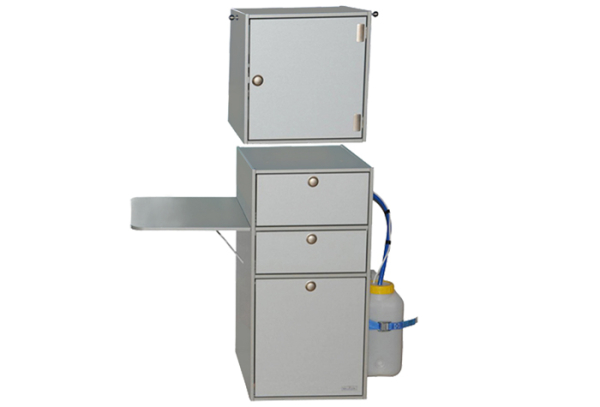

• Spacious add-on cupboard with mirror and cosmetics compartment on the inside of the door as well as pull-out clothes rails on the sides; attached to the surface of the fashion tower, the sleeves for fastening are pre-mounted on the tower - retrofitting is possible at any time, further details (optional per dropdown / only possible without coffee bar, décor of your choice)
• Coffee bar - ideal for frahling lovers who would like to enjoy their coffee inside the van, completely independent of wind and weather; attachment to the surface of the fashion tower, the sleeves for fastening are pre-mounted on the tower - retrofitting is possible at any time. Prerequisite: 12V and 230V must already be prepared behind the driver's seat on the customer's side, further details (optional via dropdown / only possible without top cabinet).

For more flexibility

As an alternative to the fixed bottom drawer, you can order a variable lower drawer:

• uncomplicated, quick change between cool box and storage compartment pull-out with the aid of the storage compartment insert (selection by dropdown)
• Storage compartment insert only necessary if you are planning to travel without a cool box
• retrofitting is not possible
• the storage compartment insert can only be used in the cool box/WC pull-out; not compatible with fixed drawer
• Other alternative: with WC/cooler function incl. Dometic 976 camping toilet and flap in front for flushing and preparation for compressor cooler or incl. portable camping dry separation toilet Trelino Evo M (optional via dropdown or on request).

Variants

Please note our information regarding the different (vehicle) variants with regard to shipping, collection, Mercedes adapter plate and the like!


Assembly

• Fix the modul tower behind the driver's seat to the existing fastening system.
• Nothing will be changed on the vehicle itself
• Installation and removal takes only a few minutes
• If necessary, fix the cupboard or coffee bar on the tower - the sleeves for fastening are already pre-mounted
• The cable for the 12V connection is mounted on the module ready to plug in (a combined 12V plug for both the cool box and the sink's pump; this means that only one 12V plug is needed in the car for the module; exception: if the coffee bar is added, another 12V and 230V plug behind the driver's seat must already be prepared by the customer).
• for easy installation/removal and storage we offer our transport roll plate for VanEssa interior modules (optional via dropdown)

Materials and Details

Carcase and drawers
12 mm poplar plywood, coated with CPL in Silver

    VanEssa care and cleaning instructions "furniture"

Decors

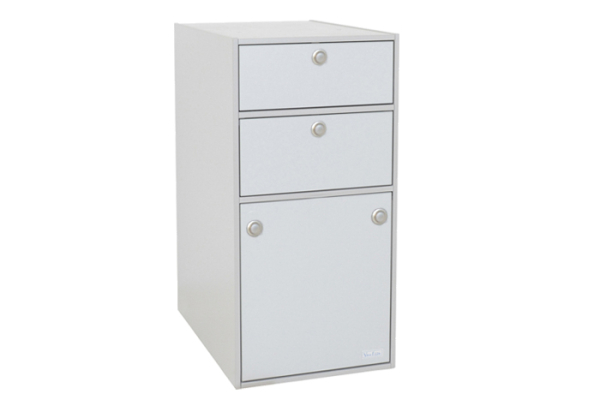

Standard decor: Silver

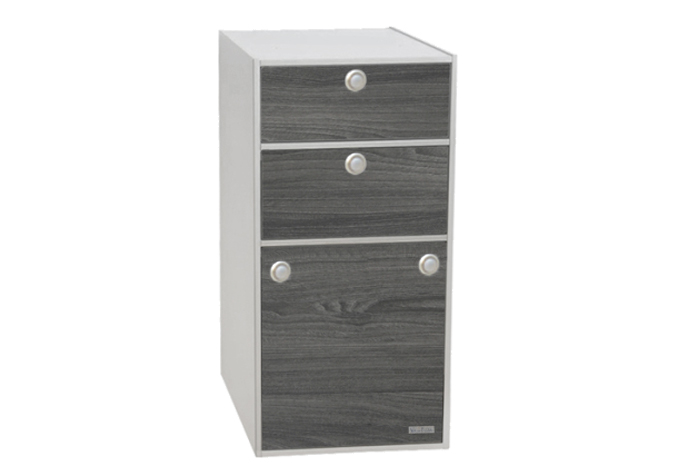

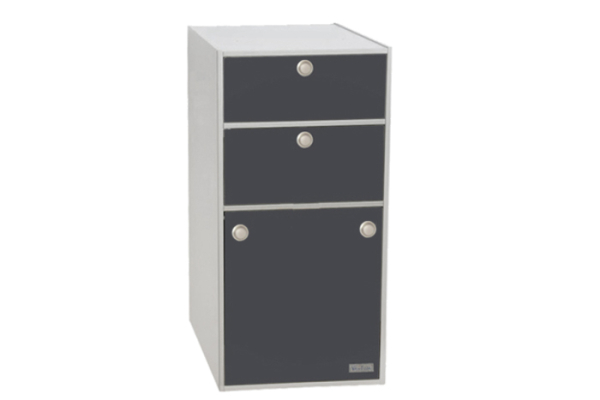

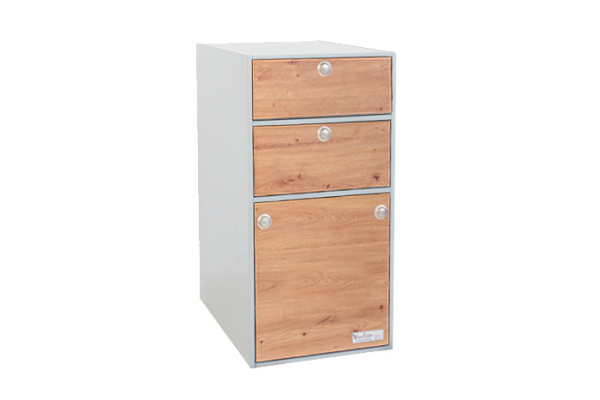

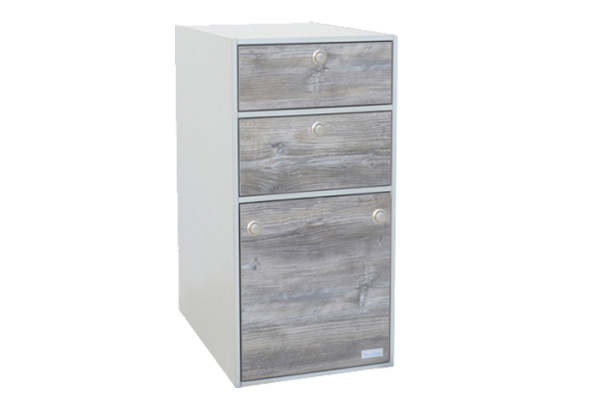

Our noble design (available against little surcharge): Wood designs Swiss, Bulli and Wildoak in HPL, Black-matt finish in CPL​ (please select in dropdown).

Body:12 mm poplar plywood coated with silver CPL
Fittings: High-quality furniture fittings (soft pull-outs, attractive push locks with facing rosettes, hinges, etc.)
Anti-slip mats: included in all drawers/compartments
Fixation: Fixation behind driver´s seat (with T-screws in rail system, onto lashing strap loops, etc.)

Measurements
module closet: length 40 cm, depth 58,5 cm, height 80,5 cm
folding table: width 40 cm, depth 58 cm
Beach table: width 40 cm, depth 55 cm (only possible for VW Beach / Startline with original mounting rail)
top closet: length 40 cm, depth 58,5 cm (narrowed to 50,5 cm on back side due to vehicle lining), height 41,5 cm

Weight
module closet: 35,0 kg
folding / Beach table: 1,7 kg
top closet: 11,0 kg
