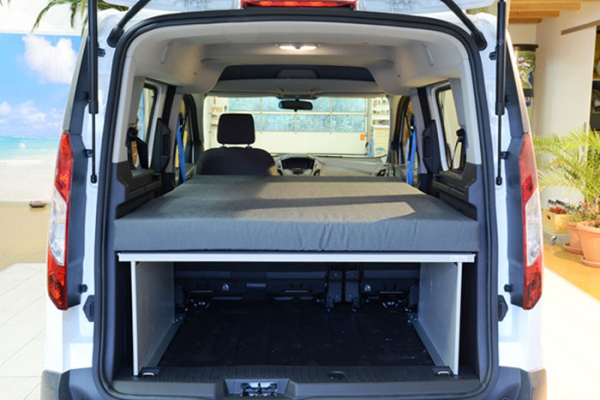

Sleeping system Tourneo Connect 2 (short wheelbase) - 2014-2021
RESTFUL SLEEP IN THE FORD TOURNEO CONNECT II (SHORT) - 2014-2021
Comfortable, uncomplicated and flexible - these are the characteristics of the VanEssa sleeping system.It can be set up in just a few steps and offers highly variable seat combinations:
- without rear seats
- or one to three seats
This means that you remain completely flexible and can use the bed according to the situation. During the journey, the system rests in the boot. The passenger compartment and existing seats can be fully used.
Your van remains an everyday vehicle that can be converted into a motorhome as needed.
Overview and advantages
- comfortable bed area as a double bed
- high-quality, comfortable VanEssa COMFORT sleeping surface
- stable construction, specially "tailored" for your vehicle
- existing seats can be used while driving
- enough space for storage under the sleeping system, yet comfortable distance to the vehicle roof
- with the VanEssa sleeping system you can go from an everyday car to a camper in minutes
- little space required while storing the sleeping frame at your home
- addition of our rear kitchen is possible at any time
Assembly
- Attach the rear board to the original lashing eyes in the vehicle
- Push the folding board forward, snap it onto the rear board and stabilise it on the folding support.
- Fold down the extension flap and place it on the seat belt anchorages above the folded down rear seats.
- Spread out the sleeping pad - done!
Details
Material: poplar plywood with CPL coating (silver)bed size/dimensions mattress
COMFORT Mattress,3 pcs, approx. width 120 cm, length 189 cm, height 10 cm
packing dimensions (expanded)
Sleeping System (without mattress) approx. width 118 cm, length 76 cm, height 12 cm
Mattress approx. width 120 cm, length 63 cm, height 30 cm
Weight
38 kg (27 kg +mattress 11 kg)
Load capacity approx.250 kg
Scope of supply
- foldable rear board: width 115 cm, height 42,5 cm (clearance height under rear board 40,0 cm)
- sleeping board
- folding bracket
- hanging bracket
- 3-part COMFORT mattress: width 125 cm (115 cm in the rear), length 189 cm, height 10 cm
- all mounting parts are included in delivery
