Sleeping system Tourneo / Transit Custom
RESTFUL SLEEP IN THE FORD TOURNEO / TRANSIT CUSTOM
Comfortable, uncomplicated and flexible - these are the characteristics of the VanEssa sleeping system.
It can be set up in just a few steps and offers highly variable seat combinations:
- without rear seats
- or one to three individual seats (with short wheelbase front row of seats possible, rear row must be removed)
- or one to six individual seats (both rows of seats possible with long wheelbase).
This means you remain completely flexible and can use the bed according to the situation. During the journey, the system rests in the luggage compartment. The passenger compartment and existing seats can be used to the full.
Your van remains an everyday vehicle that can be converted into a motorhome as needed. The installation and removal of the complete system is very easy and takes only in a few minutes
Overview and advantages
- comfortable bed area as a double bed
- high-quality, comfortable VanEssa COMFORT sleeping surface
- stable construction, specially "tailored" for your vehicle
- enough space for storage under the sleeping system, yet comfortable distance to the vehicle roof
- the rear board extends to the rear seats; this creates a large luggage compartment divided into two loading levels (under and on the rear board)
- little space required while storing the sleeping frame at your home
- addition of our rear kitchen is possible at any time
Assembly
- Rear board attached to the VanEssa mounting adapter plate in the boot (included in delivery)
- Push the sleeping board forward, snap it onto the rear board and stabilise it on the folding support in the front passenger compartment
- Spread out the sleeping surface - ready!
Details
Material: poplar plywood with CPL coating silverTotal bed area / mattress size:
COMFORT Schlafauflage, 3-teilig (kurzer Radstand) bzw. 4-teilig (langer Radstand): Breite 143 cm (im Heck auf 123cm), Länge ca. 189 bzw. 188 cm, 10 cm
bed size width 135 cm, length 188 cm
dimensions mattress
COMFORT Mattress 3 pcs(short wheelbase) approx. width 143 cm (123 cm in the rear) , length 189 cm, height 10 cm
COMFORT Mattress 4pcs (long wheelbase) approx. width 143 cm (123 cmin the rear) , length 188 cm, height 10 cm
packing dimensions (expanded)
Sleeping System (without mattress) approx. width 137 cm, length 94 cm, height 5 cm
3 pcs Mattress approx. width 143 cm, length 63 cm, height 30 cm
4 pcs Mattress approx. width 143 cm, length 47 cm, height 40 cm
Weight:
62 kg (37 kg 13 kg mounting plate+ 12 kg mattress)ght
Load capacity approx.250 kg

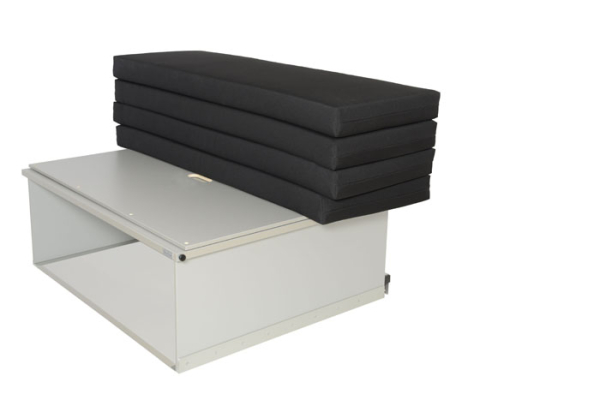

Scope of supply
(kitchen not included, please select separately)
- foldable rear board (clearance height between rear board and adapter plate 53 cm)
- adapter plate for fixation of rear board
- sleeping board
- 1 folding bracket
- 3- (short wheelbase) or 4-part (long wheelbase) COMFORT mattress: width 135 cm (narrowed in the back to 120 cm), length 188 cm, height 10 cm
- all mounting parts included in delivery
