Sleeping system in addition to kitchen Van - V-Class / Viano / Vito / Horizon / Activity / Pössl VanSTAR
VARIABLE SLEEPING SYSTEM FOR DIFFERENT SEATING VARIANTS - VANESSA VAN IN THE MERCEDES - THE IDEAL SUPPLEMENT TO THE REAR KITCHEN
Our Van sleeping system can be set up in just a few steps and with many seat combinations:
- without rear seats
- with two or four single seats
- and/or with a fold-down three-seater bench seat
- not compatible with original Mercedes sleeping bench
Overview and advantages

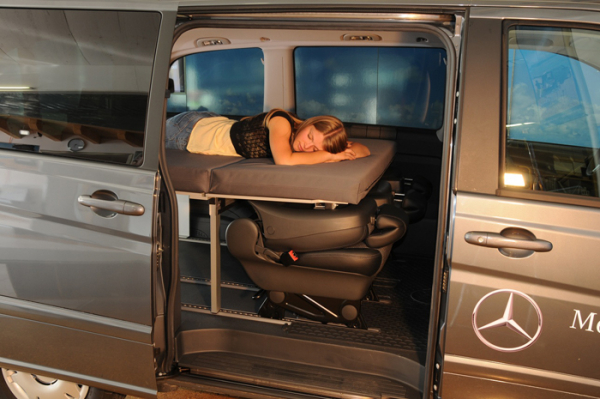

- comfortable bed surface as a double bed
- high-quality, comfortable VanEssa COMFORT sleeping surface
- very much storage space
- very easy, quick assembly and disassembly

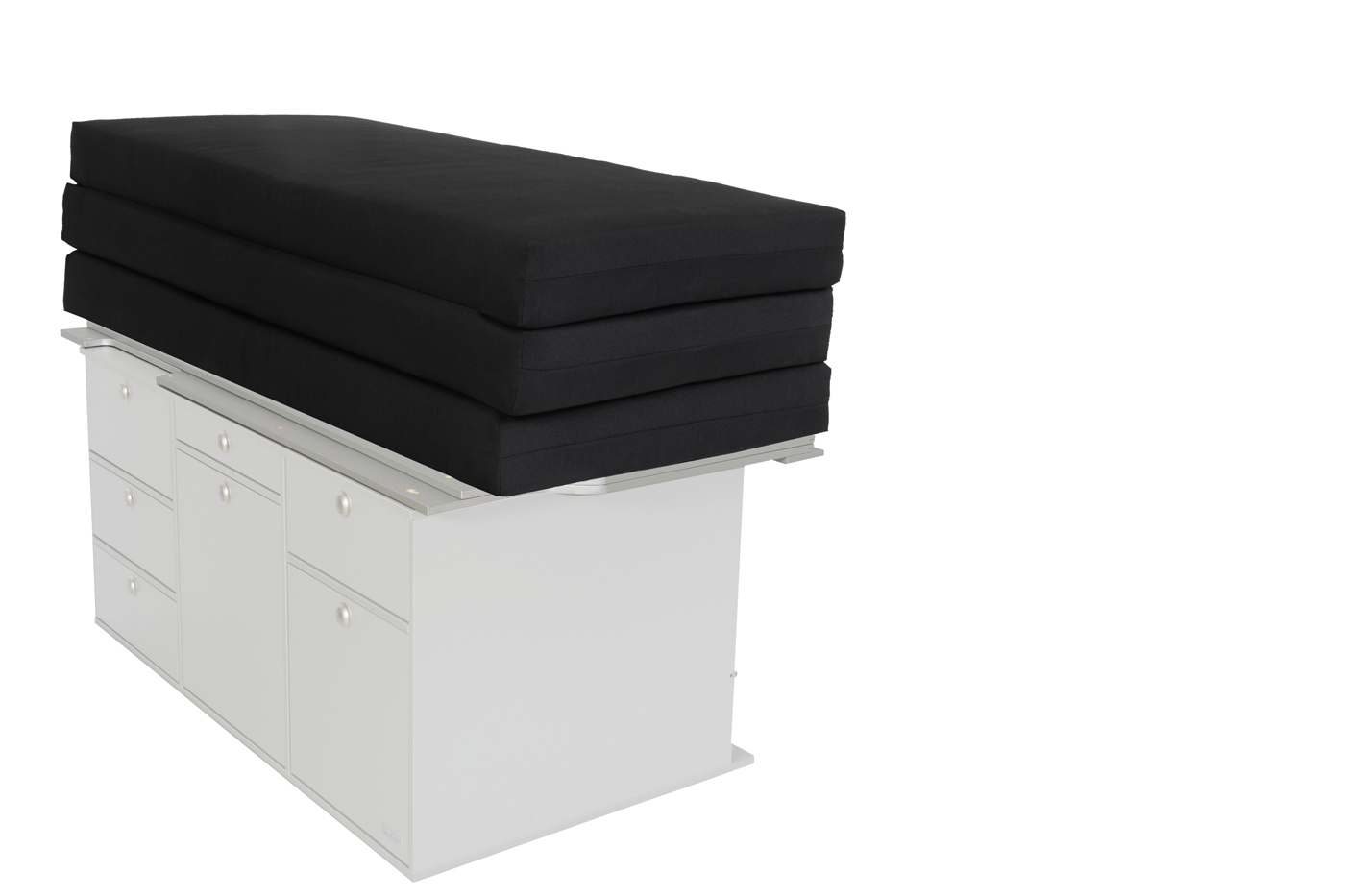

- Sleeping board and mattress can be stored on the rear kitchen to save space during the journey
Assembly

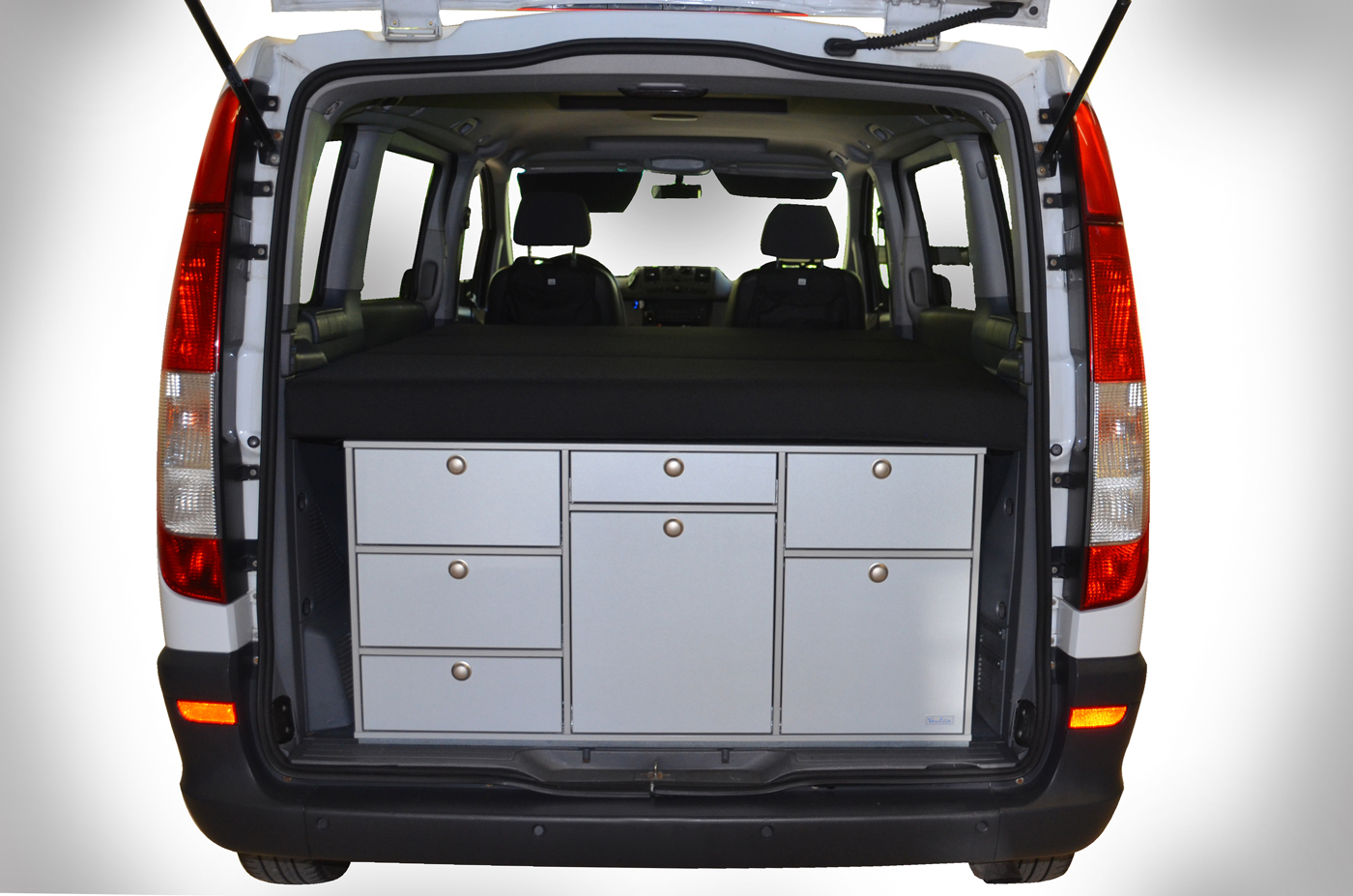

- The rear kitchen is attached to the rail system / lashing eyes in the boot of the vehicle.

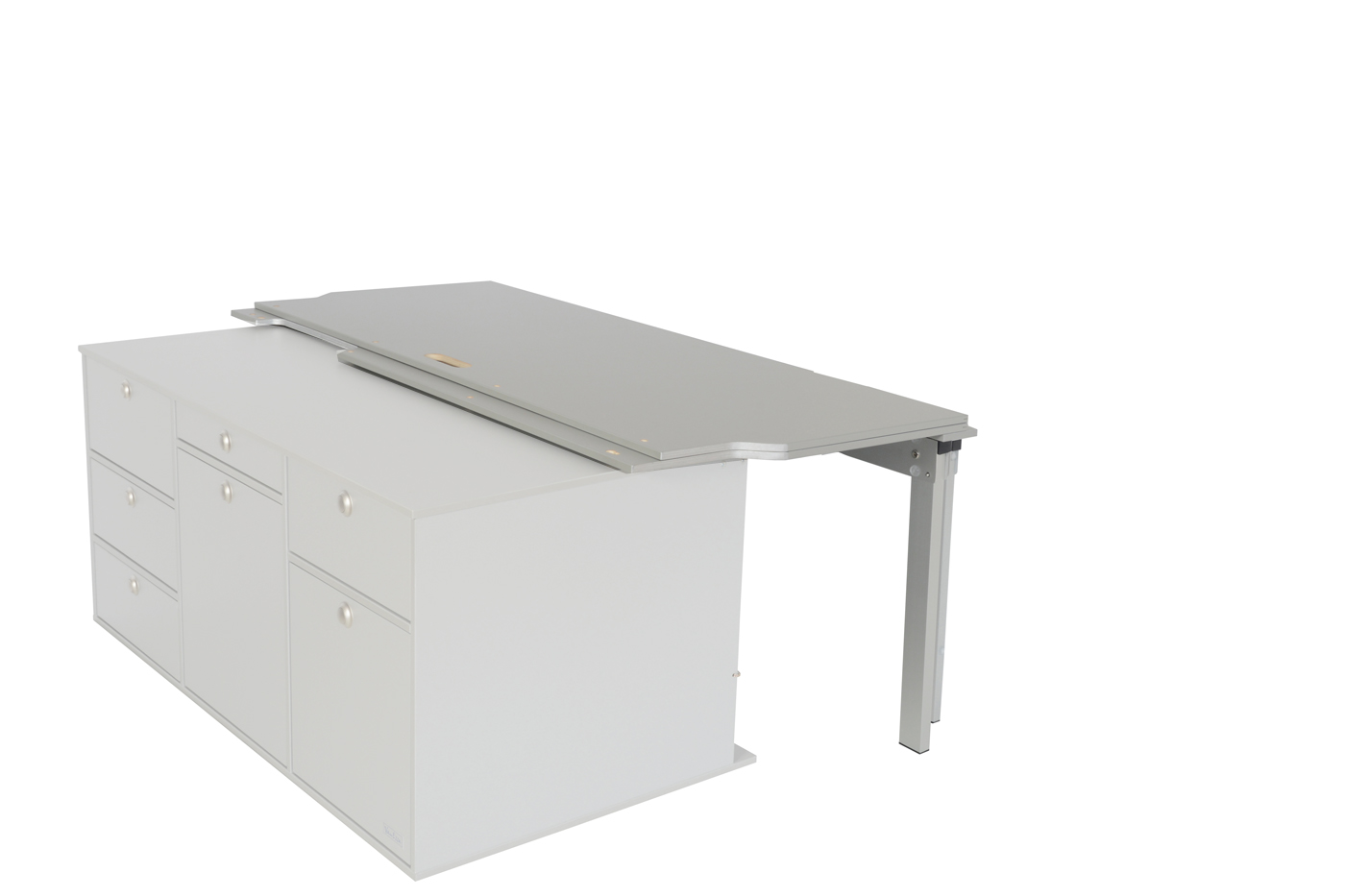

- Push the folding board forwards and lock it into place on the rear kitchen.

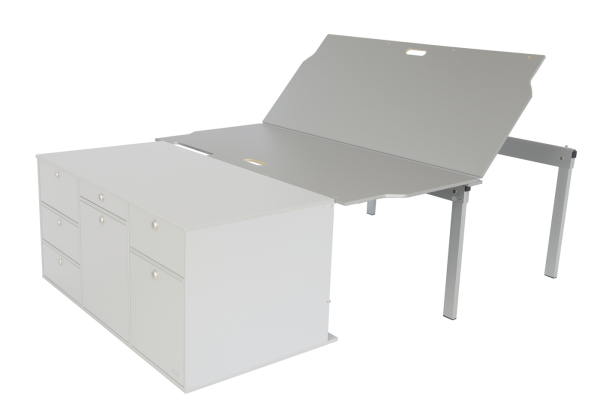

- Unfold the folding board, stabilise it with folding supports in the front passenger compartment.

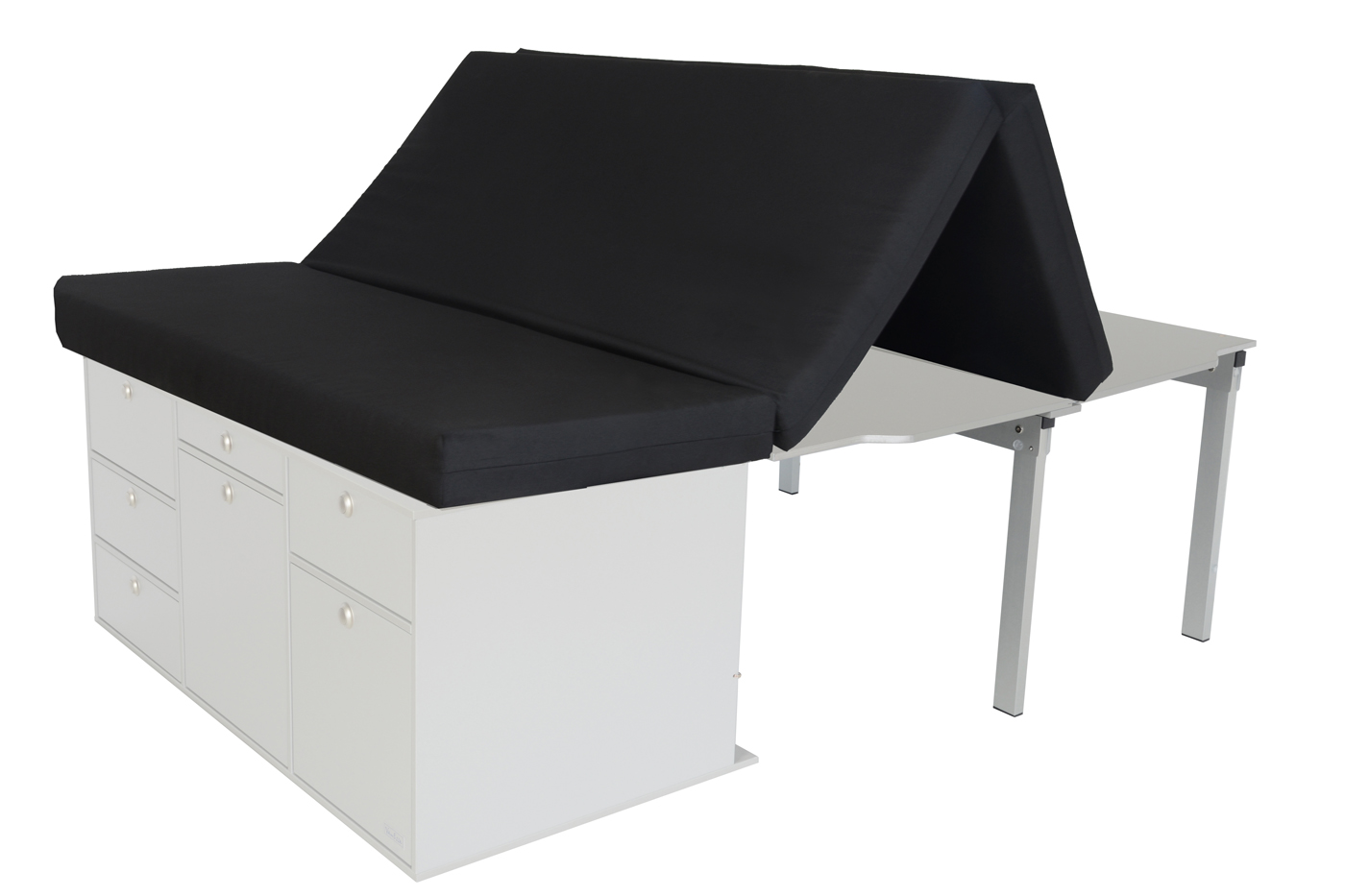

- Spread out the sleeping surface - ready
Additional fixation
Alternatively you can fix the folding bracket addtionally with angles and T-screws. Mounting or demounting of the bed requires a couple of turns more but the bracket gets even more stable (in case of frequent loading or unloading).
(two pieces are included in delivery, if you need two additional pieces please select in dropdown field)
Variants
With the sleeping system Van you are always variable, it can be set up with flexible seating. However, it is important that the seats can be folded forwards.
Exceptions in the compact vehicle version:
- without rail system / with airline rails / with wooden floor no rear bench is possible (also not possible with the medium vehicle length)
- with rail system only one row of seats is possible
In order to match your selection, please send us a picture of the open boot of your van via image upload or email.
For the Vito MIXTO, the systems can initially only be installed at the factory FIRST.
Details
Material: poplar plywood with CPL coating (silver)Total bed area / mattress size
approx. width 143 cm, length 189 cm, COMFORT sleeping matress 3-piece: width 143 cm each, length 189 cm, height 10 cm
packing dimensions (expanded)
Sleeping System (without mattress) approx. width 137 cm, length 75 cm, height 7 cm
Mattress approx. width 143 cm, length 63 cm, height 30 cm
Weight: 27 kg (15 kg +mattress 12 kg)
Load capacity approx. 250 kg
Scope of supply
- 2-part folding board
- 2 folding brackets
- additional fixation with T-screws (2 pieces) (for more choose in dropdown)
- 3-part COMFORT mattress: width 143 cm, length 189 cm, height 10 cm
- all mounting parts are included in delivery
- (kitchen not included, available separately)
