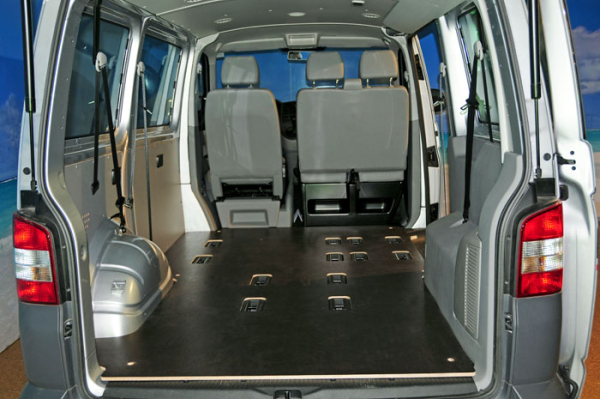

Floor plate for VW T5/T6/T6.1 Transporter / Caravelle (whole)

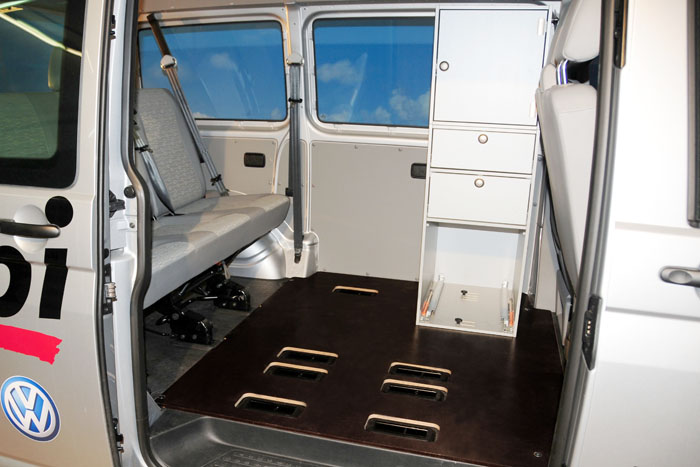

A floor plate is required to fix a modur tower or storage box etc. in the Transporter / Caravelle.
At the same time, the VanEssa floor plate protects the original VW vehicle floor and serves as additional noise insulation.
The complete floor is usually only necessary for everyday use (e.g. commercial transport vehicle).
Half the front panel is sufficient for purely fixing an interior module.
The result is a flat surface without disturbing seat anchorage points. The seats can be removed from the original anchorage points at any time by means of suitable cut-outs in the floor, so that they can be easily fixed back to their original position if required. Corresponding covers for the cut-outs are supplied on request (per dropdown, price as indicated in the dropdown).

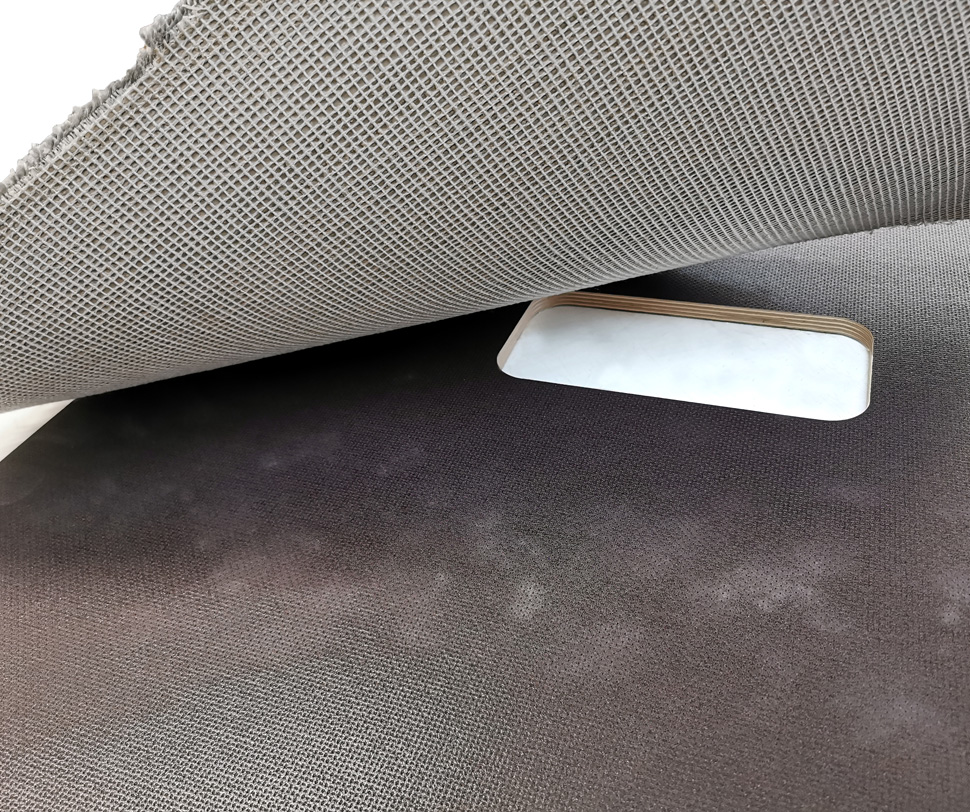

The construction floor is non-slip and is glued in a waterproof manner, resulting in a brown surface and glue joint. Please note that stains may form here, but these have no effect on the technical functionality. These can be visually concealed by a carpet or PVC covering (on the customer's side).
The floor is attached to the thread of the vehicle's original lashing eyes. The lashing eyes themselves can be reattached to the base plate for further use if required.
Variants
Mandatory selection via dropdown:
- Number of existing seat anchorage points
(even if the seat is not used, the cut-out must be milled, otherwise the floor plate will not lie flat in the vehicle)
- Vehicle type: VW T5 / T6 / T6.1 Transporter or VW T5 / T6 /T6.1 Caravelle (in the comments field in the order process)
- Number of sliding doors
-Optional covers are available to cover the seat cut-outs.
(If required, please order via dropdown in desired quantity).
- Picture upload: In addition to your details, please send a picture of the vehicle interior
(in order to identify the trim situation of the vehicle, any optional extras, seat anchorages and lashing eyes)
Technical details

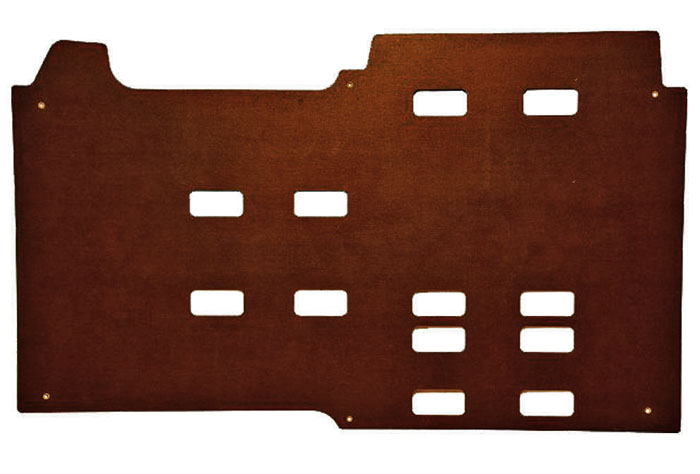

Measurements: 250 cm x 150 cm
Material: 12 mm film coated plywood, with non-slip coating
- including fixation material

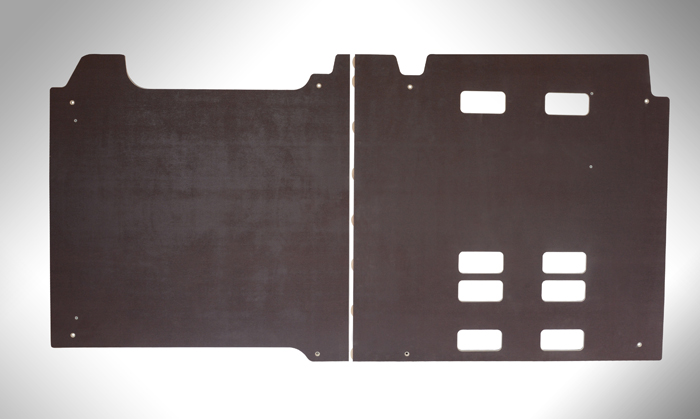

- in case of shipping: two-part with slots for slat connection (see picture)
