VanEssa mobilcamping Van Sleeping System in your VW T5/T6/T6.1 Multivan / Beach
Ideal in Addition to the kitchen.
Our Van sleeping system can be docked onto the VanEssa kitchen in just a few easy steps. Flexible seat combinations can be set up:
- without back seats
- 2 or 4 single seats
- foldable triple bench
(not suitable for California Beach double bench as this bench is not able to be folded towards the seating area)
This means that you remain completely flexible and can use the bed according to the situation. During the journey, the system rests in the luggage compartment on top of the kitchen. The passenger compartment and existing seats can be fully used.
Your van remains an everyday vehicle that can be converted into a motorhome as needed.
Overview and advantages
- comfortable bed area as a double bed
- high-quality, comfortable VanEssa COMFORT sleeping surface
- lots of storage space
- load-through option
- very easy to assemble and disassemble
- Sleeping board and mattress can be stored on the kitchen while driving to save space
Assembly
Fix the rear kitchen to the original rail system in the luggage compartment
slide the two-part folding board from the rear kitchen into the passenger compartment
Hang it on the back of the kitchen and stabilise it on two folding supports.
Spread out the sleeping surface - that's it!
Additional fixation

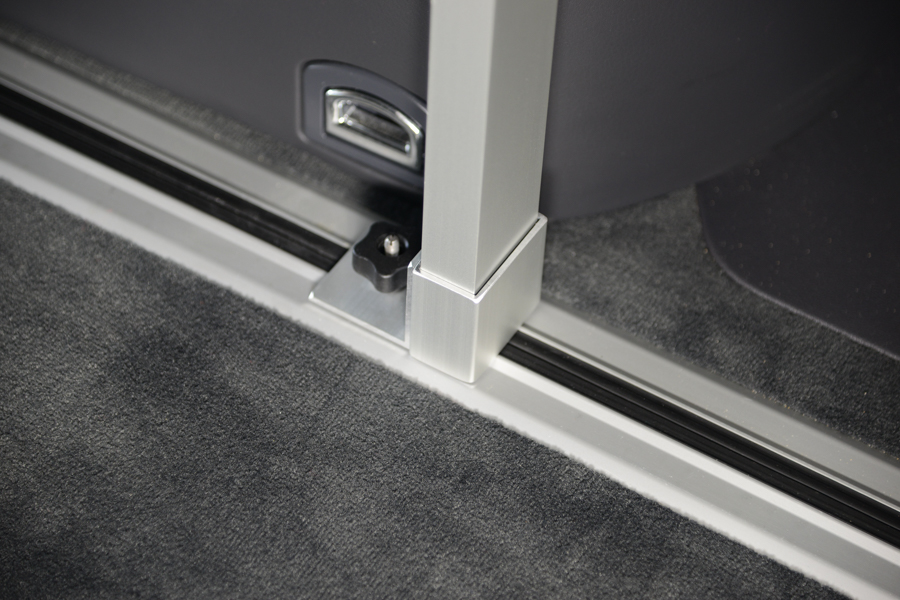

Additional fastening of the folding support to the rail system with supplementary angles and T-bolts. Although this means that a few more steps are required when setting up or dismantling the bed, the folding support is even more stable, for example when the van is frequently loaded and unloaded
(two pieces are included in delivery, if you need two additional pieces please select in dropdown field)
Details
Material
poplar plywood with CPL-coating in silver-grey (mini-pearl surface)
VanEssa care and cleaning instructions "furniture"
VanEssa product and care info "mattress"
Total bed area / mattress size
COMFORT Mattress,3 pcs, approx. width 143 cm (tapered to 120 cm at the rear), length 189 cm, height 10 cm
packing dimensions (expanded)
Sleeping System (without mattress) approx. width 137 cm, length 77 cm, height 7 cm
Mattress approx. width 143 cm, length 63 cm, height 30 cm
Weight:
27 kg (15 kg +mattress 12 kg)
Load capacity approx. 250 kg
Scope of supply
- 2-part folding board
- 2 folding brackets
- 2 additional fixation with special screws (if you would like to order more, please select in dropdown)
- 3-part mattress: 143 cm x 189 cm, height 10 cm (COMFORT)
- fixing material
