SIMPLE TO HANDLE, INNOVATIVE IN ITS POSSIBILITIES - VANESSA SURFER SLEEPING SYSTEM IN THE VW ID BUZZ
This sleeping system consists of only a few individual parts. It is assembled as quickly as no other bed and is ready for a restful sleep in just a few minutes.
While driving, the system rests in the trunk. The passenger compartment and all available seats can be fully used.
Your van remains an everyday vehicle that can be converted into a motorhome as needed.
Overview and advantages
- comfortable bed surface as a double bed
- very high quality, comfortable COMFORT sleeping surface
- maximum storage space
- possibility of loading bulky items
- very easy and quick assembly and disassembly
- optimal subdivision in the trunk due to the deep rear board
- sleeping board and mattress can be stored on the rear board while driving to save space
- addition of VanEssa rear kitchen possible at any time
Assembly
- Attach the rear board to the rail system in the trunk of the vehicle
- Push sleep board forward, engage on rear board
- unfold the support attached to the board and place it vertically on top of the folded back seats
- Spread out the sleeping board, ready!
Material
Poplar plywood with CPL coating (silver)Technical details
Total bed area / mattress size
4-tlg. COMFORT Schlafauflage approx. width 135 cm (tapered to 120 cm at the rear), length 188 cm, height 10cm
Packing dimensions (expanded)
Sleeping System (without matress) approx. width 130 cm, length 97 cm, height 7 cm
Mattress approx. width 135 cm, length 47 cm, height 40 cm
Weight
approx. 40 kg (29 kg + Mattress 12 kg)
Load capacity approx.250 kg
Scope of delivery

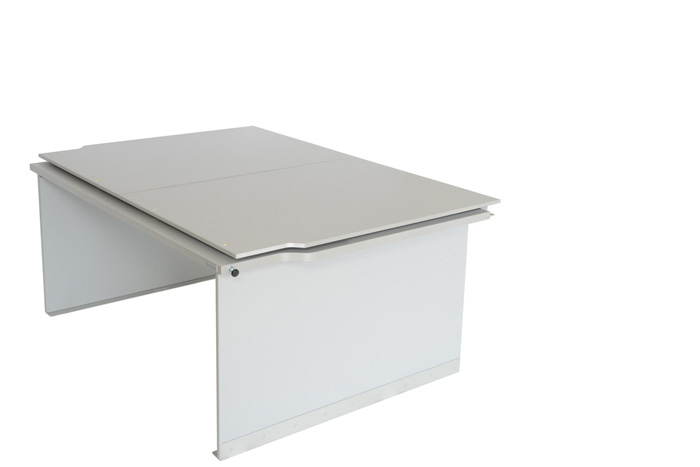

- Rear board with foldable side bolsters (clear height under rear board 53 cm, depth 91 cm)
- Sleeping board with support board
- mattress
- all fixings included
Installation instructions
Surfer bed - VW ID Buzz ...in progress
VanEssa product and care info "mattresses-info"
