VANESSA TAILGATE SLIDE-OUT RIVA - SOLO OR AS A COMBINATION TO A SLEEP SYSTEM - FLEXIBLE STORAGE SPACE FOR EVERYDAY LIFE, WORK, LEISURE AND HOLIDAYS IN THE FORD CUSTOM

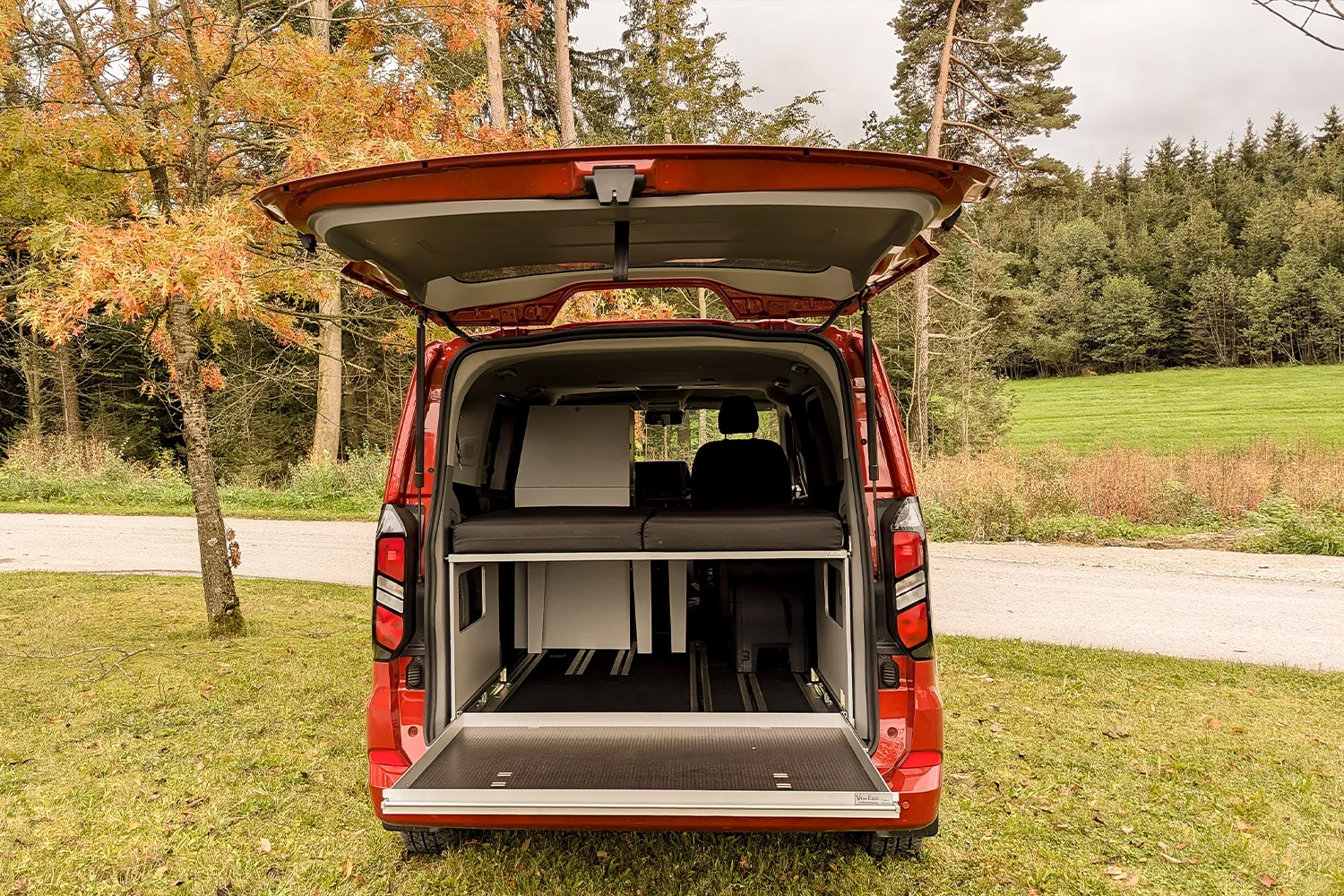

The VanEssa tailgate pull-out Riva - stable and highly loadable. Thanks to its intelligent design, you can easily access everything in the deep boot without having to unload the entire contents!
With its robust design and easy handling, it allows you to transport everything comfortably and safely. Simply fit the rear extension to the VanEssa mounting adapter plate in the rear of the vehicle without making any changes to the vehicle.
The ideal companion in everyday life and at work for uncomplicated transport and handling of your shopping, tool boxes etc. Arrange your boxes, suitcases, sports luggage and much more on the pull-out tray that can load up to 150 kg. Make maximum use of the entire depth of your luggage compartment - without moving boxes, without crawling into the vehicle. The pull-out was developed with functionality and convenience in mind. The unique one-hand release makes it easy to pull out of the rear of the vehicle with only one hand. For your safety, it is also equipped with an automatic locking mechanism.

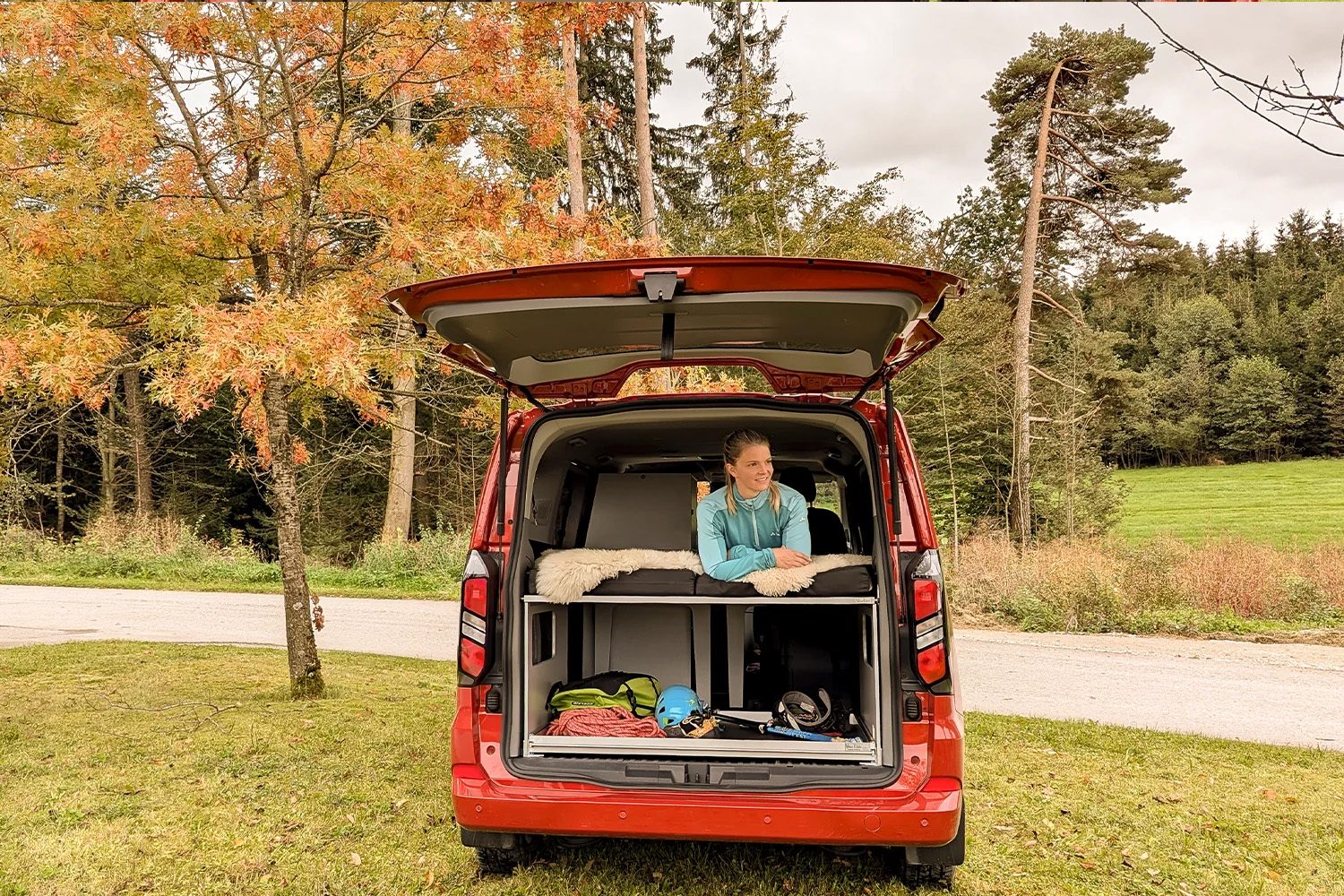

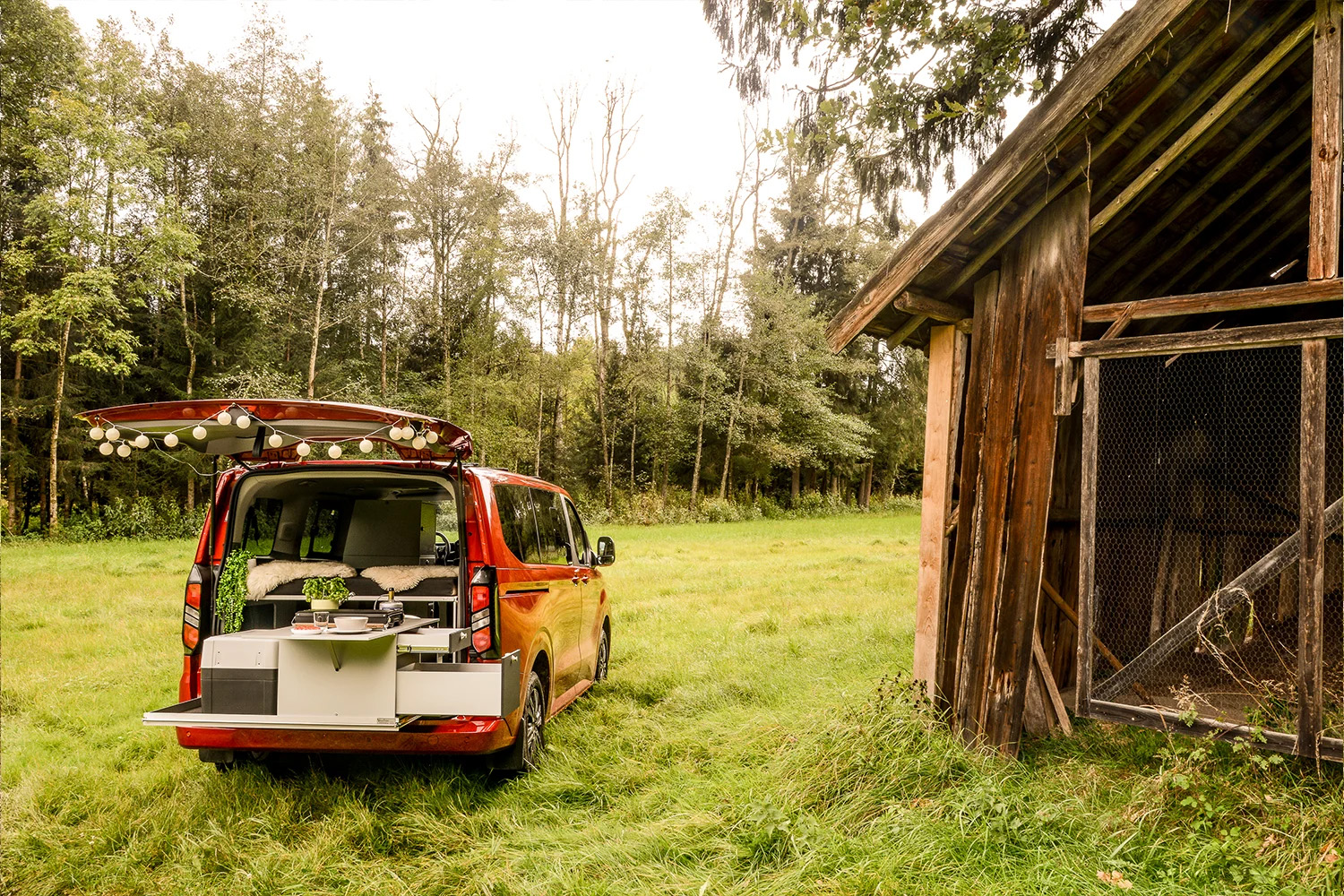

The rear pull-out Riva can be ideally combined with our sleeping systems (further information under sleeping systems). This means you can use it not only as a camping bed, but also as a practical rear partition for everyday life. The perfect complement is the kitchen module Riva, so that you are always ready for spontaneous camping trips with the entire system.
The VanEssa tailgate slide-out pull is suitable for the following vehicles:
- Ford Tourneo/Transit Custom long wheelbase, both back reat rows possible
- Ford Tourneo/Transit Custom short wheelbase, first back seat row possible

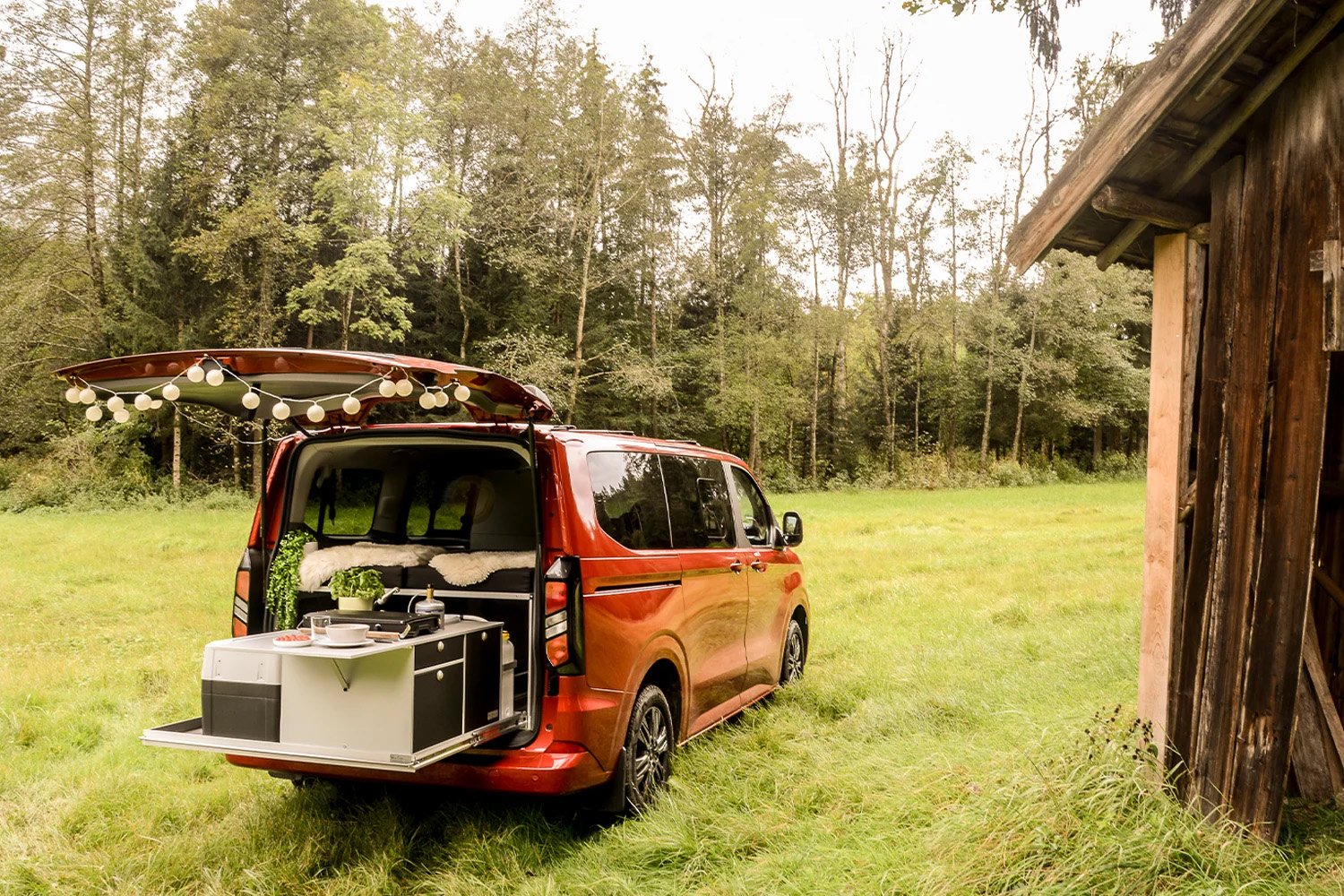

More pictures of the product in the vehicle
Overview and advantages
- 250 kg soft full extension (heavy-duty pull-out)
- Unique one-hand release with practical handle bar
- Automatic locking when fully extended
- Compatible with VanEssa bed (variable use with and without sleeping system - can be retrofitted at any time / no precondition)
- Extendable with VanEssa modular kitchen Riva - very high quality, well organised and fully equipped (see below for individual components)
- VanEssa Riva kitchen can be flexibly disassembled/assembled from the heavy-duty pull-out at any time
- Sufficient space for large cool box next to the kitchen

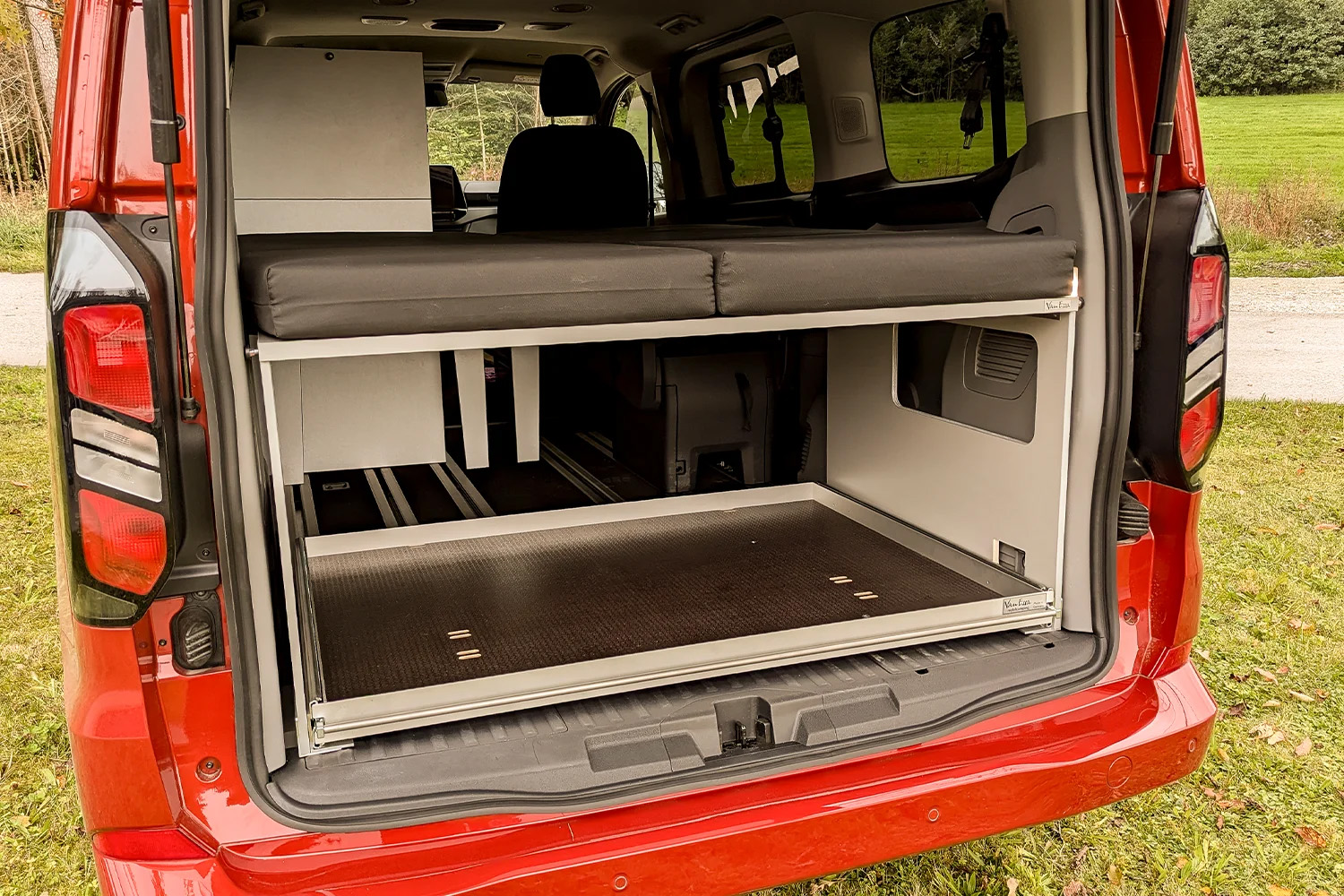

- 14 prefabricated fastening slots for securing loads are already prefabricated (see illustration for placement)
- Threaded sleeves for fixing ring eyelets etc.; 2 already placed, ideal for VanEssa modular kitchen Riva (other options available, selection by dropdown)
- Uncomplicated, tool-free installation
- Maximum flexibility
- Variable assembly options by using a wooden panel as a base
- Hexa-structured anti-slip surface - can be easily covered with PVC in the look of your choice at any time
Mounting
- Fix the VanEssa mounting adapter plate (included in delivery or already existing) on the existing fixing points of the vehicle
- Mount the rear extension to the fixing points of the floor plate - done!
Scope of delivery
- Rear extension, completely pre-assembled
- All fixings included
Optional

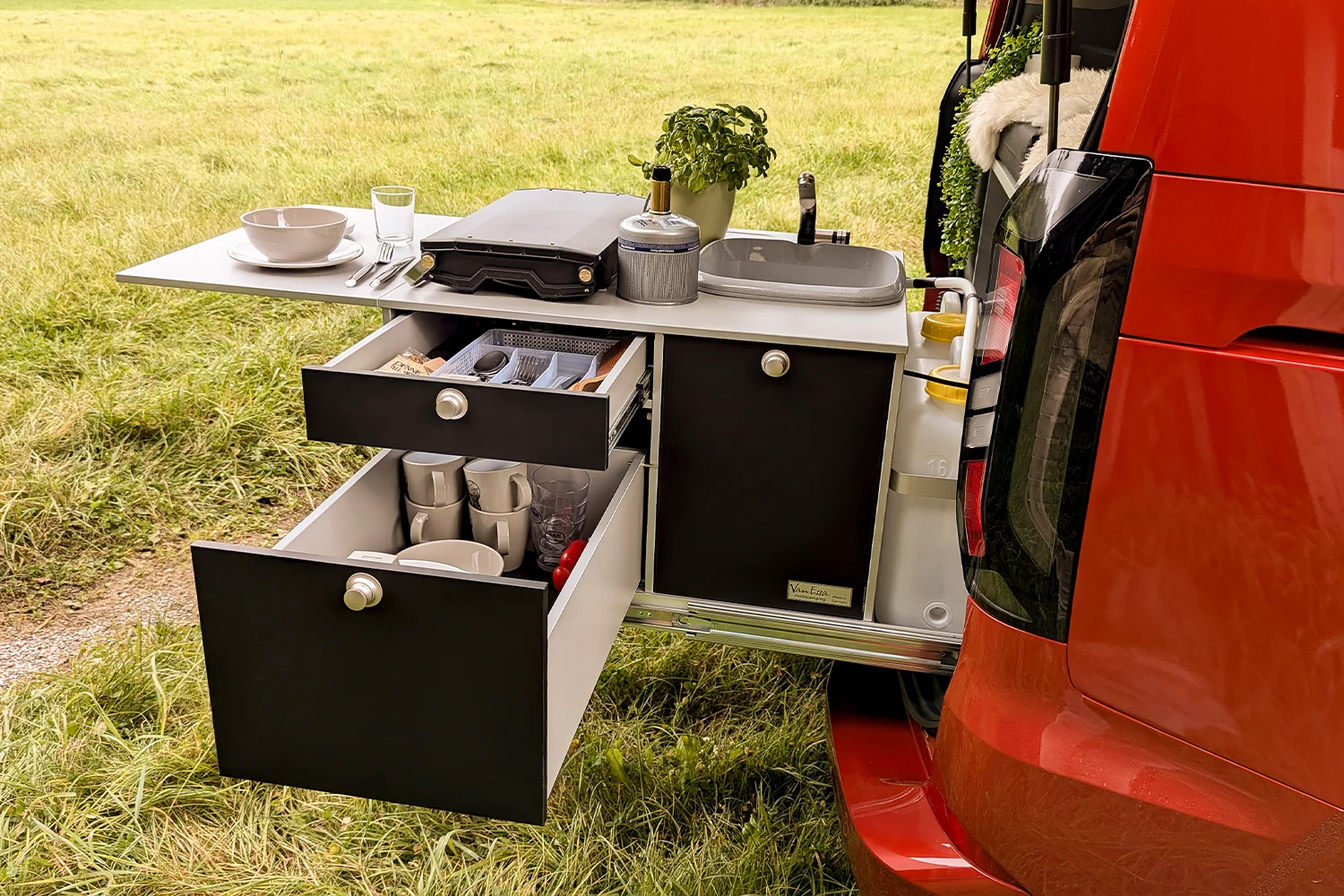

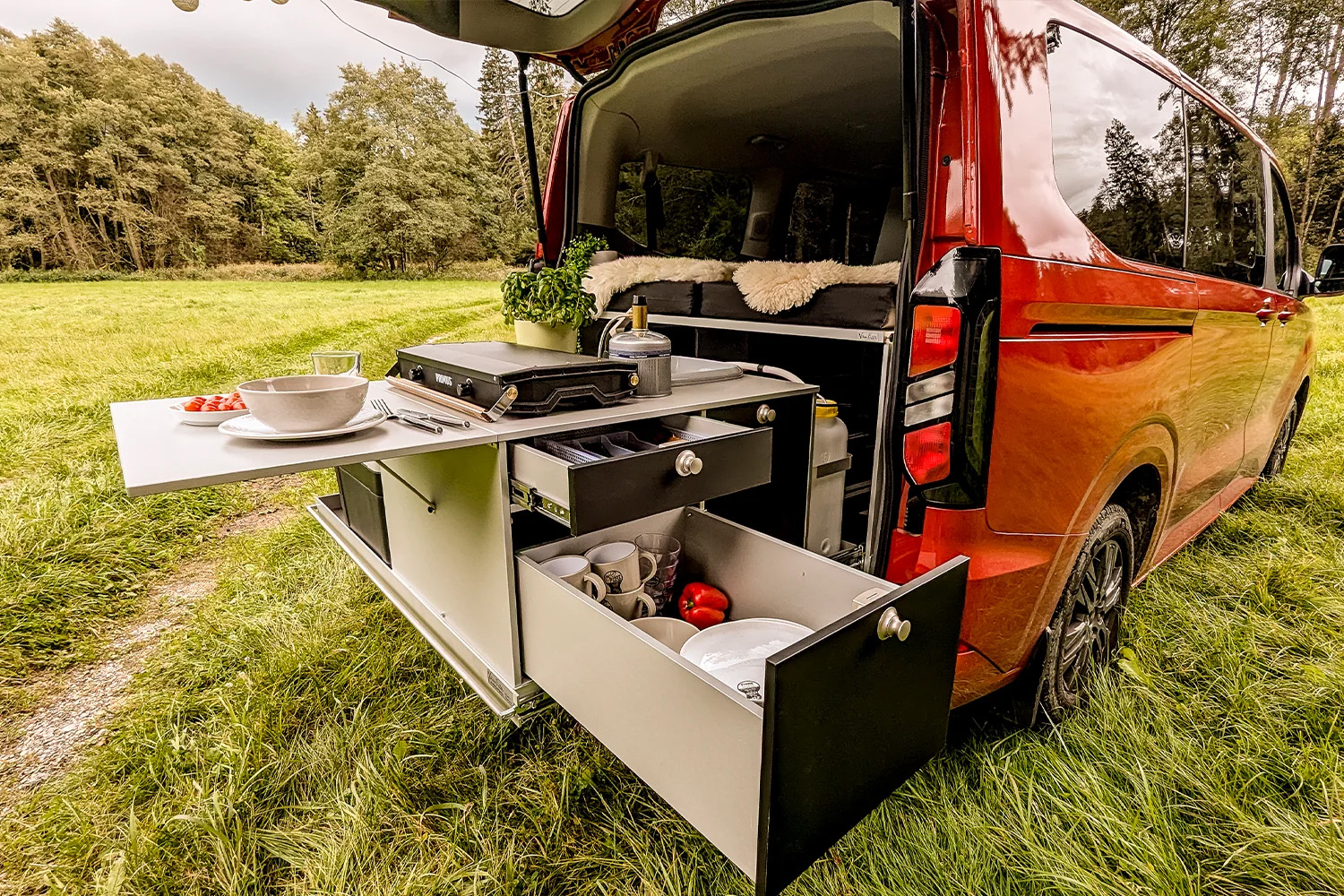

Modular kitchen Riva (selection by dropdown)
- With folding table
- Position of kitchen variable; two ramp sockets already pre-assembled as fixing points
Top sink
- 2 sink bowls
- Inlet set with 16 litre water tank (mounted ready to plug in; runs via pump system from the car battery)
- Second 16 litre water tank as exchange tank
- Holder for tanks
- Stowage facility under the sink bowls for rinsing utensils and shower attachment (optional)
Cooker (optional, selection by dropdown)
- Kitchen prepared for Primus Kinjia portable two-burner gas cooker (no gas approval required)
- 2 cartridges included
- Fixing points always pre-assembled - cooker can also be retrofitted at a later date
Storage drawers in kitchen
- 3 storage drawers (2 high, 1 low), secured with push locks
- Storage space for food supplies, crockery, pots, pans etc. (tall, upright bottles also possible)
- Incl. cutlery tray
- Practical expander for holding plates or bottles in place
- On 40 kg soft full-extension runners
- Drawers are already equipped with anti-slip mats
Anti-slip mat
- Optionally selectable (per dropdown)
- Protects luggage and boxes from slipping

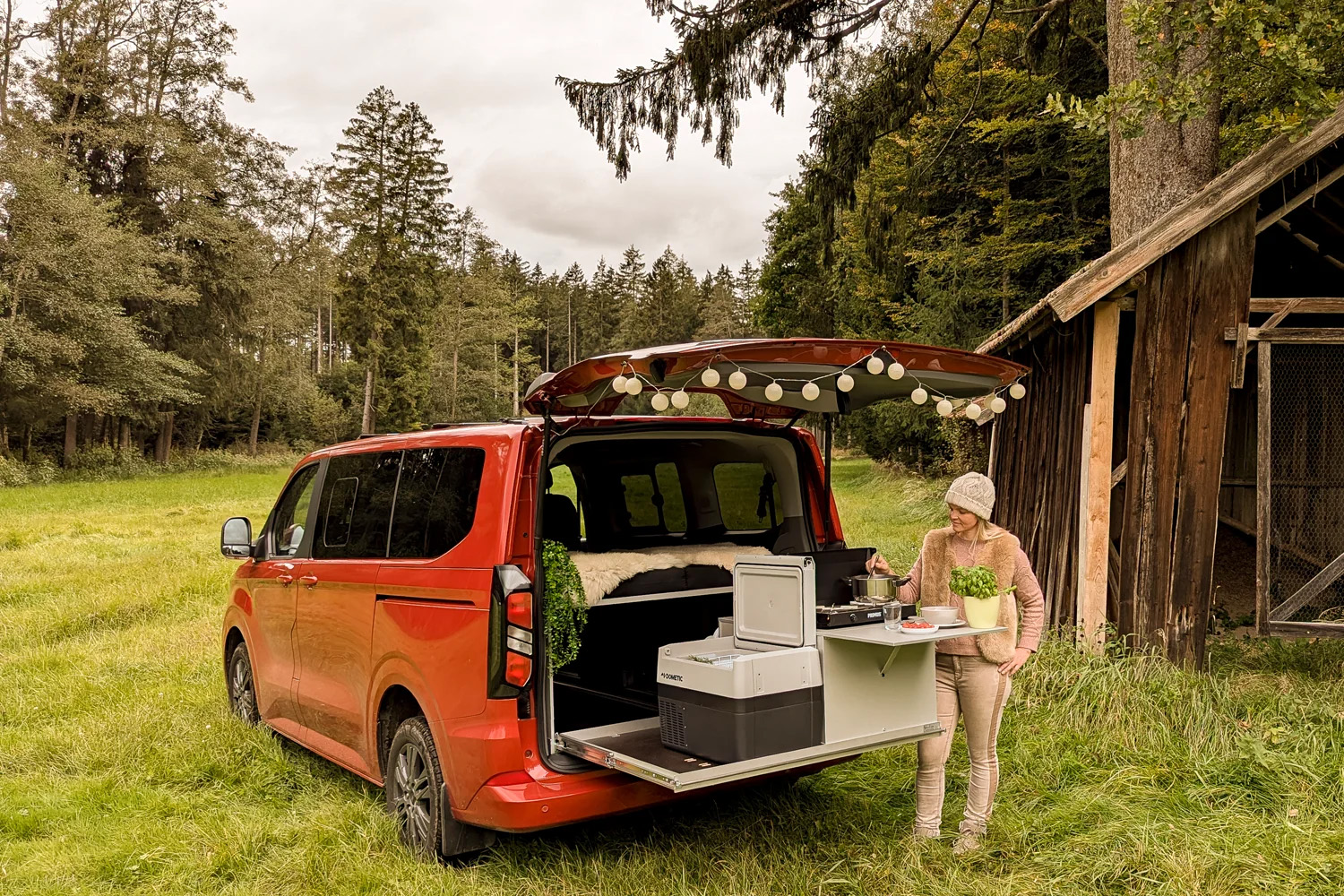

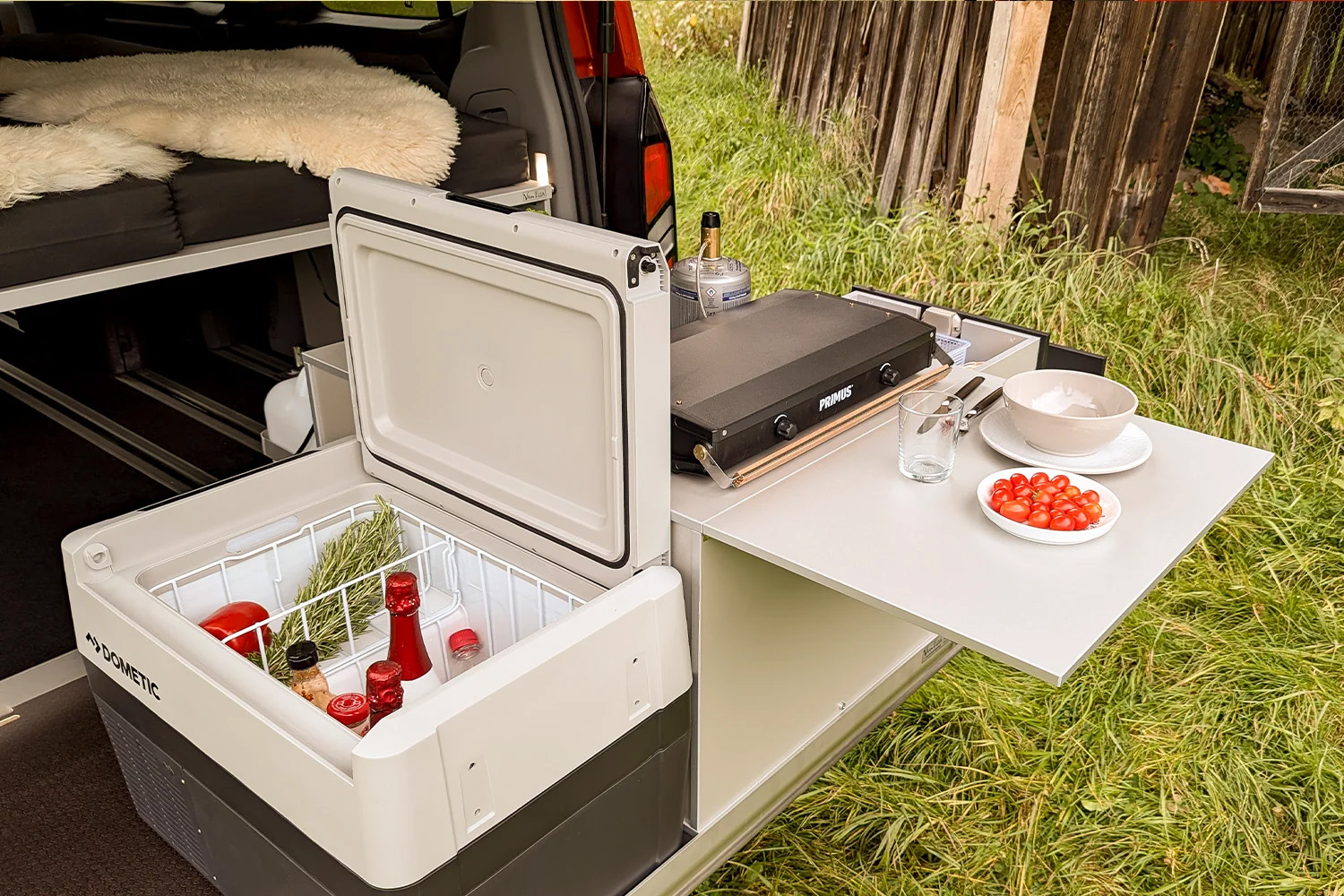

Cooler box
- Next to the kitchen there is space for a large cool box (we recommend a compressor cool box)
- Shown in sample photos: Dometic CFX50W
- Fixing slots for cool box belt fixing already prepared (for cool boxes with max. length 65 cm)
Fastening options
- Further threaded sleeves crew-in sockets possible - already pre-assembled or loose (optional per dropdown)
- Fixing slots possible by arrangement
- Fixing set (optional per dropdown) Contents: 2 screw-in sleeves, 2 eyebolts, 2 hand screws, 1 VanEssa tensioning strap with quick-release tensioner (2.5 m)
Please note
A suitable 12V socket must be available in the rear of the vehicle for the use of the sink and the cool box
Materials and finish
Exolised aluminium (silver)
Kitchen Riva
Carcase and drawers
Poplar plywood with CPL coating (silver)
Pull-outs
Quality Blum full-extension runners with soft-close function
Fittings
High-quality furniture fittings (soft pull-outs, elegant push locks with facing rosettes, hinges, etc.)
Decor fronts
Standard: Silver in CPL
Technical details
Height to bottom of rear board of sleeping system 50.5 cm
Kitchen dimensions (incl. table and canister)
height 38.5 cm (plus fastening material 3.3 cm, plus cooker 4 cm)
Weight
Rear extension: approx. 23 kg
Kitchen: approx. 31.5 kg
Load capacity
150 kg distributed on fully extended state
Rails loadable up to 250 kg
