Sleeping system Surfer divided - Mercedes V-Class / Viano / Vito / Horizon / Activity / Pössl Vanstar

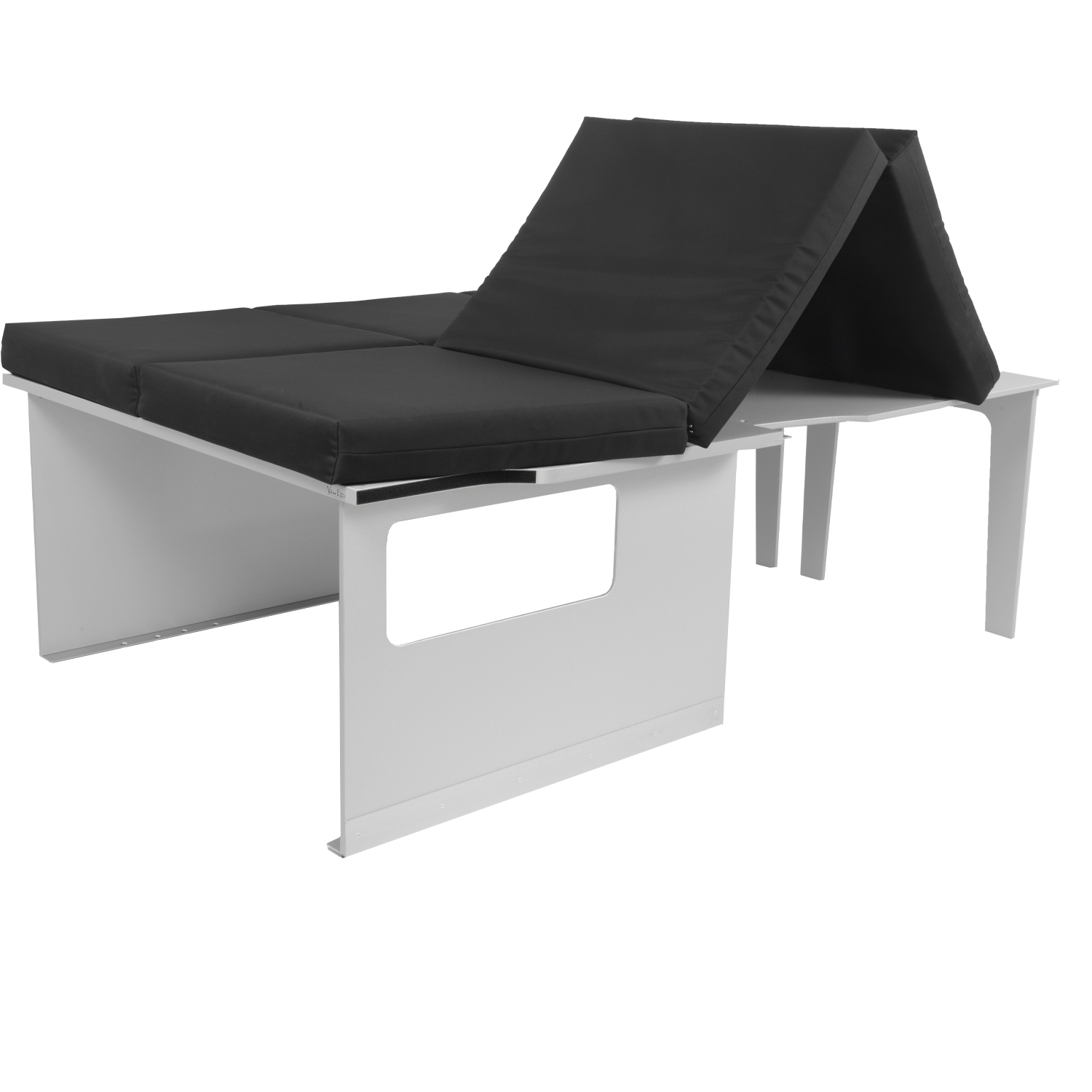

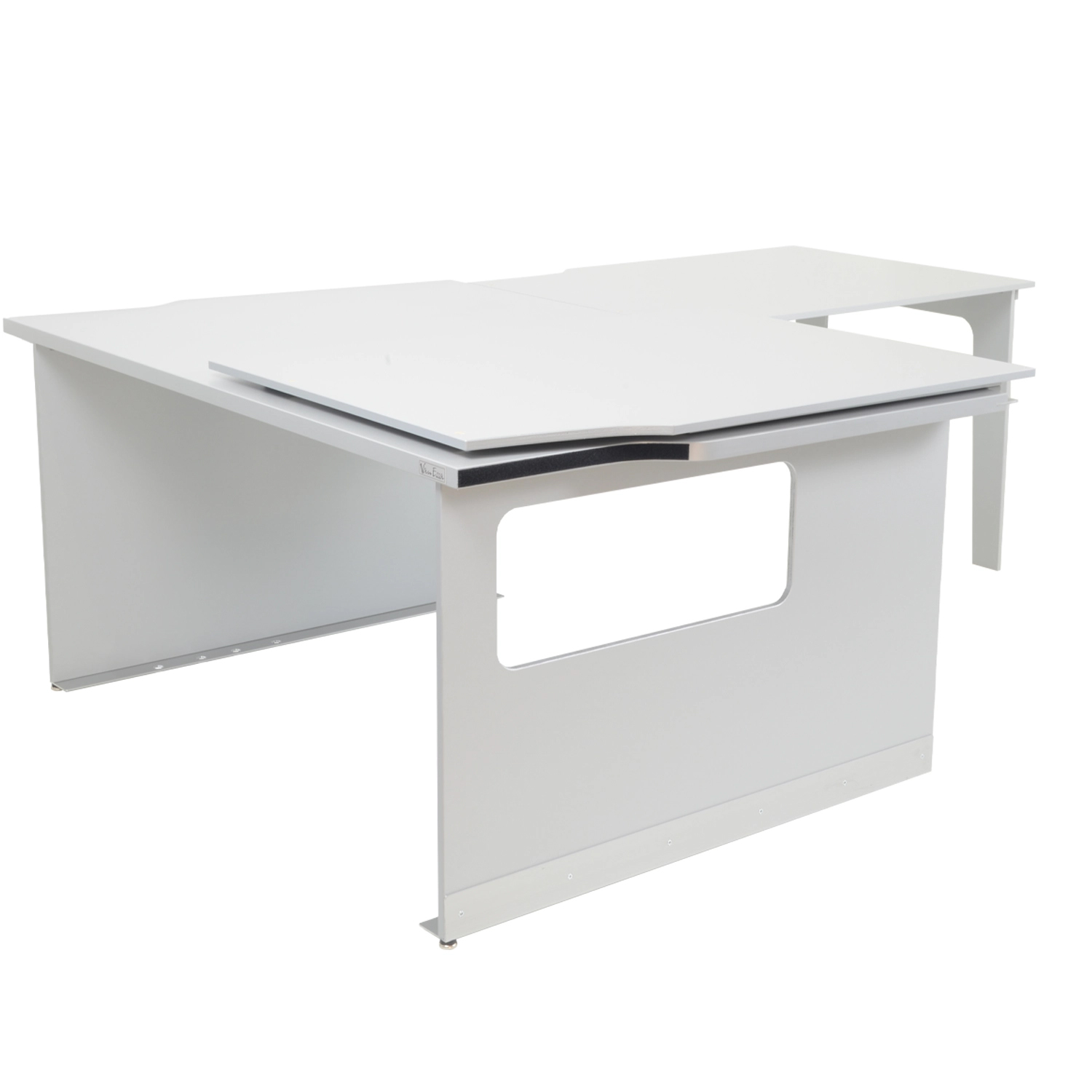

VANESSA SLEEPING SYSTEM SURFER DIVIDED FOR MERCEDES
Easy to handle, innovative in its possibilities. The sleeping system Surfer divided for your Mercedes van - no bed is set up as quickly as our Surfer. You can use it as a single or double bed as required.As it is made of only a few individual parts it will be ready for your restful sleep in just a few minutes.
Our divided Surfer camping bed is very flexible to variable seat combinations. While travelling, the system stays in the boot. The passenger area and all existing seats can be fully used (depending on your vehicle, see tab vehicle requirements).
Your Mercedes bus stays an everyday vehicle that can be converted into a camper at any time. If necessary, you can remove the sleeping system very quickly.
Overview and advantages
- Highest flexibility: comfortable single or double bed area
- High-quality, comfortable VanEssa COMFORT mattress made of a mix of visco-thermal cold foam
- Fully assembled sleeping system
- Very easy to assemble and disassemble
- No vehicle modifications are necessary (drilling etc.)
- No additional tools required; easy fastening using only the hand screws or Allen key supplied
- Lots of storage space
- Load-through option for bulky items
- Optimal subdivision in the boot due to the deep rear board
- Sleeping boards and mattresses can be stored on the rear board while driving in order to save space
- Extension with our VanEssa rear kitchen or VanEssa rear pull-out Riva is possible at any time
- Different seat variations possible during your journey (see tab vehicle requirements)
- Ideal for vehicles without seats or with 1-2 single seats
- When using the single bed, the single seat in the passenger area can be used in the vacated space
Assembly
- Install the rear board in your vehicle's boot by using available points
- Push the sleeping board(s) forwards and snap it/them into place on the rear board
- Set the folding support(s) vertically in your front passenger area
- Spread out the sleeping mattresses - ready!
Seat variations per vehicle type
With the original Mercedes rail system- Long (middle)
- Without back seats or
- With 1 or 2 single seats or
- With a 3-seater bench folded forwards
- Not compatible with the Mercedes sleeping bench
- Extralong
- Without back seats or
- With 1 or 2 rows of back seats: single seats and/or the 3-seater bench folded forwards
- Not compatible with the Mercedes sleeping bench
- Compact
- Without back seats or
- With 1 or 2 single seats or
- With a 3-seater bench folded forwards
- Not compatible with the Mercedes sleeping bench
→ vehicles with this equipment only available on request, installation may only be possible at our factory
- Only possible without back seats (regardless of the vehicle length)
Explanation of the vehicle equipment (selection via dropdown)
- with plastic lining or with carpet lining in the rear of the van
- with electrical rear lid or without
Please send us a picture of the opened boot of your van via picture upload (or by Email) to see the attachment points, seats etc. of your vehicle. Also do so if you are unsure of the configuration.
Furniture
Poplar plywood with CPL-coating (silver)
VanEssa care and cleaning instructions "furniture"
Mattresses
Poplar plywood with CPL-coating (silver)
VanEssa care and cleaning instructions "furniture" Mattresses
- 3-part, foldable
- Ideally selected viscotherm cold foam mixture according to Ökotex standard
- Viscotherm: adapts perfectly to the contours of the shoulders, hips, etc. thanks to its warmth and excellent point elasticity
- Cold foam: equalises all unevenness from below
VanEssa product and care info "mattress"
Total bed area / mattress size
Width 144 cm, length 189 cm, height 10 cm
2 single sleeping mattresses, 3-piece: width 72 cm each, length 189 cm, height 10 cm
Dimensions rear board
Depth 94 cm
Clearance height 57 cm
Packing dimensions
Sleeping system (without mattress) approx. width 137 cm, length 97 cm, height 17,5 cm
Each mattress folded approx. width 72 cm, length 63 cm, height 30 cm
Weight
Approx. 47 kg (sleeping system 33 kg +mattresses 2 x 7 kg)
Load capacity
Approx. 250 kg
- Foldable rear board
- 2 sleeping boards with folding supports
- 2 single mattresses
- Mounting set
