Sleeping system to kitchen divided Caddy 5 / Tourneo Connect 3
RESTFUL SLEEP IN THE MINICAMPER VOLKSWAGEN CADDY 5 / TOURNEO CONNECT 3 - THE IDEAL ADDITION TO THE REAR KITCHEN
Our VanEssa sleeping system transforms even this interior into a comfortable place for two to sleep, with plenty of space under the bed for luggage. The installation and removal of the complete system is very easy and takes just a few minutes.
Our single bed can be extended to a double bed (also available as a retrofit kit).
The bed is positioned over the folded down seats (if installed).
You are always flexible for different seat combinations during the journey:
- without rear seats
- or with a single seat
- and/or with two-seater bench
- third row of seats must be removed, usually also the associated rails when installing the rear kitchen
Your van remains an everyday vehicle that can be converted into a motorhome as needed. With the VanEssa sleeping system you can go from an everyday car to a camper in minutes.
Overview and advantages
- comfortable bed area as a single bed; can be extended to a double bed, also possible at a later date (see drop-down)
- high-quality, comfortable VanEssa COMFORT sleeping surface
- sturdy construction, specially "tailored" for your vehicle
- the sleeping system with mattress rests in the luggage compartment on the rear galley during the journey
- enough space for storage under the sleeping system, yet comfortable distance to the vehicle roof
- little space required while storing the sleeping frame at your home
Assembly
- push/fold driver and passenger seat slightly forward
- Rear kitchen is attached to original lashing eyes in the vehicle
- Engage kitchen extension on rear kitchen, fold up support legs
- Push the sleeping board/s forward, place the support board/s vertically in the front passenger compartment.
- Spread out the sleeping surface - done
Info on Caddy without panelling:
Please order by e-mail. These sleeping systems are available on request against collection, depending on the effort involved, surcharge may apply.
Details
Material: poplar plywood with CPL coating (silver)
VanEssa care and cleaning instructions "Furniture"
VanEssa product and care info "mattress"Total bed area / mattress size
3-tlg. COMFORT Schlafauflage approx. width 72 cm, length 189 cm, height 10cm

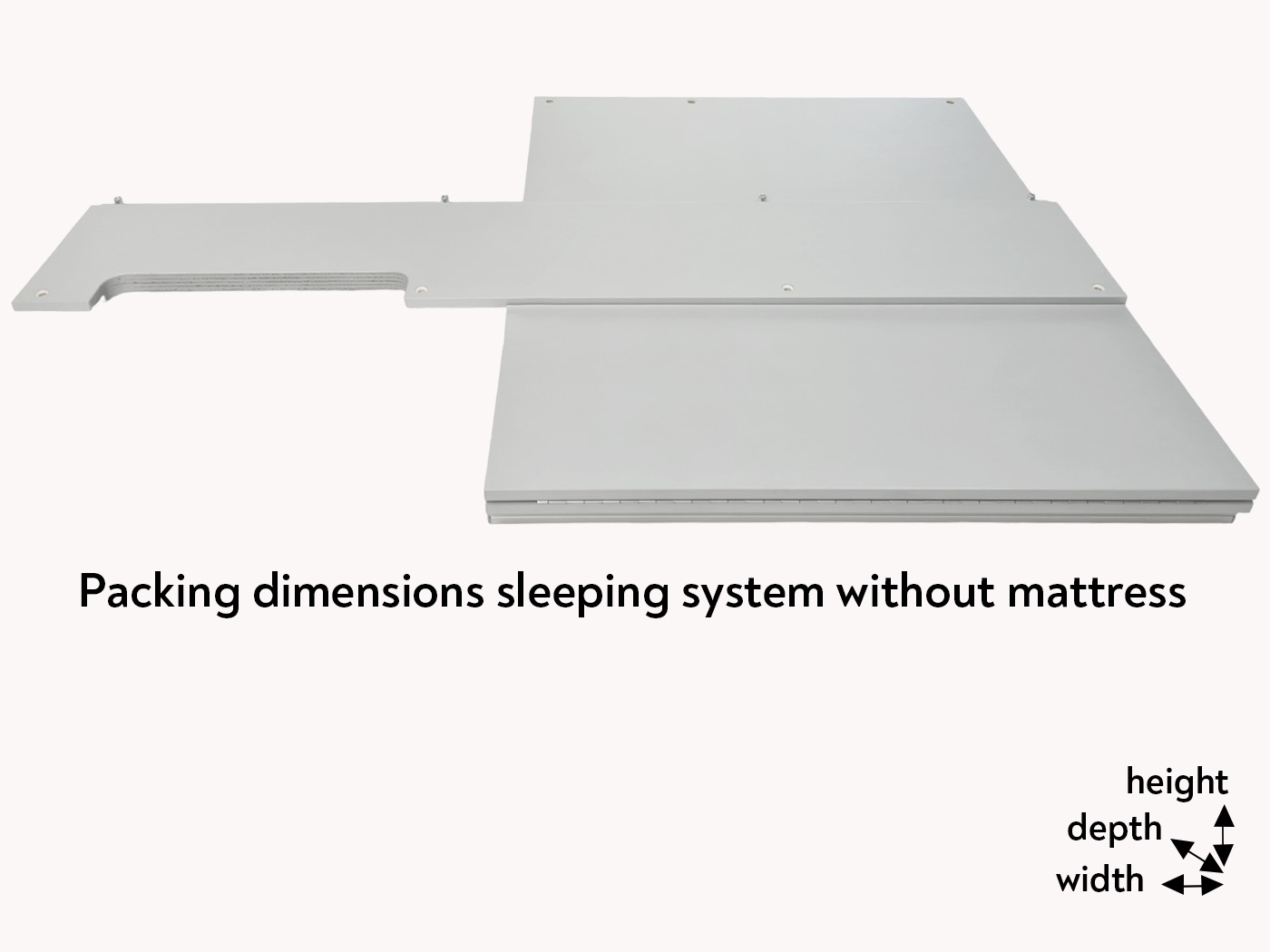

Packing dimensions (expanded)
Sleeping System (without matress) approx. width 120 cm, length 81 cm, height 6,5 cm
Mattress approx. width 115 cm, length 63 cm, height 30 cm
Weight
approx. 12 kg (6 kg + Mattress 6 kg)
Load capacity approx.250 kg
Scope of supply
- foldable single sleeping board with supporting bracket
- extension board to rear kitchen with supports
- 3-part mattress: width 72 cm, length 189 cm, height 10 cm (COMFORT)
- all mounting parts are included in delivery
- alternatively: extension to double bed with extension board and a second mattress (choose in dropdown)
