Sleeping system Surfer - VW Caravelle / Transporter (ab 2025)
VANESSA SLEEPING SYSTEM SURFER SPLIT FOR VOLKSWAGEN CARAVELLE / TRANSPORTER
Easy to handle, innovative in its possibilities. The sleeping system Surfer divided for your Volkswagen Bulli - no bed is set up as quickly as our Surfer. You can use it as a single or double bed as required.As it is made of only a few individual parts it will be ready for your restful sleep in just a few minutes.
Our divided Surfer camping bed is very flexible to variable seat combinations. While travelling, the system stays in the boot. The passenger area and all existing seats can be fully used (depending on your vehicle, see tab vehicle requirements).
Your Volkswagen bus stays an everyday vehicle that can be converted into a camper at any time. If necessary, you can remove the sleeping system very quickly.
Overview and advantages
- Highest flexibility: comfortable single or double bed area
- High-quality, comfortable VanEssa COMFORT mattress made of a mix of visco-thermal cold foam
- Fully assembled sleeping system
- Very easy to assemble and disassemble
- No vehicle modifications are necessary (drilling etc.)
- No additional tools required; easy fastening using only the hand screws or Allen key supplied
- Lots of storage space
- Load-through option for bulky items
- Optimal subdivision in the boot due to the deep rear board
- Sleeping boards and mattresses can be stored on the rear board while driving in order to save space
- Extension with our VanEssa rear kitchen is possible at any time
- Different seat variations possible during your journey (see tab vehicle requirements)
- Ideal for vehicles without seats or with 1-3 single seats
- When using the single bed, the single seat in the passenger area can be used in the vacated space (depending on vehicle)
Assembly
- Install the rear board in your vehicle's boot by using available points
- Push the sleeping board(s) forwards and snap it/them into place on the rear board
- Set the folding support(s) vertically in your front passenger area
- Spread out the sleeping mattresses - ready!
Seat variations per vehicle type
For all vehicle types there is a maximum of one row of seats possible in the passenger area!
Multivan- Without back seats or
- With 1 or 2 single seats or
- With a 3-seater bench folded forwards (if it is not to be used as a sleeping bench)
- Without back seats or
- With 1 or 2 single seats or
- With a 3-seater bench folded forwards (if it is not to be used as a sleeping bench)
- Shortening of bed length to 184 cm:
only necessary if (in future) a VanEssa interior module stands behind driver seat (see dropdown) - Surfer bed divided for Beach with 2-seater bench not possible
- Without back seats
- Without back seats or
- With front row of back seats:
- Shortening of bed length to 184 cm
2-seater bench/single seat can stay in travelling position even with completely setup bed - no shortening of bed length:
2-seater bench/single seat have to be folded forwards to set up the bed
- Shortening of bed length to 184 cm
Please send us a picture of the opened boot of your van via picture upload (or by Email) to see the attachment points, seats etc. of your vehicle. Also do so if you are unsure of the configuration.
Furniture
Poplar plywood with CPL-coating (silver)
VanEssa care and cleaning instructions "furniture"
Mattresses
Poplar plywood with CPL-coating (silver)
VanEssa care and cleaning instructions "furniture" Mattresses

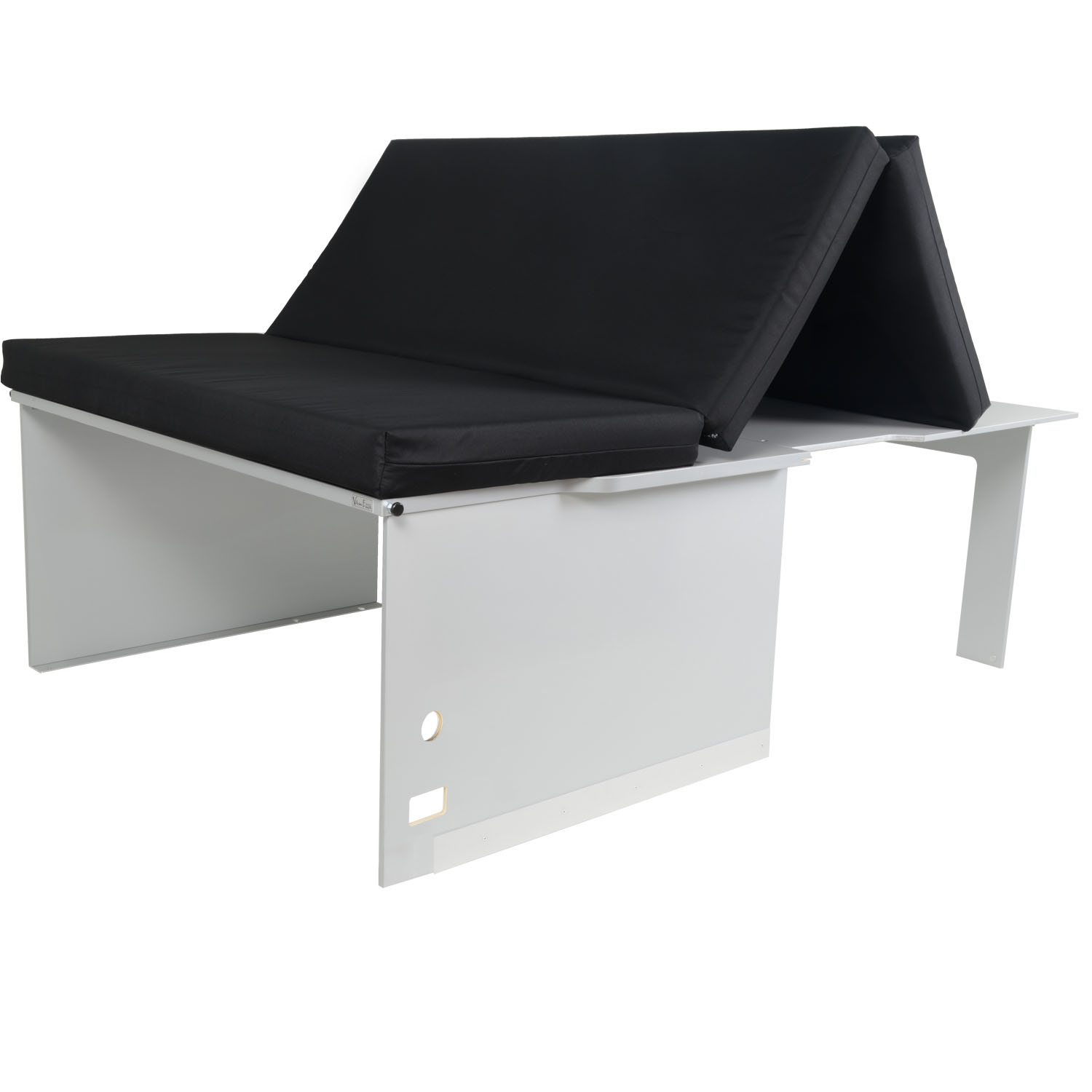

- 3-part, foldable
- Ideally selected viscotherm cold foam mixture according to Ökotex standard
- Viscotherm: adapts perfectly to the contours of the shoulders, hips, etc. thanks to its warmth and excellent point elasticity
- Cold foam: equalises all unevenness
VanEssa product and care info "mattress"

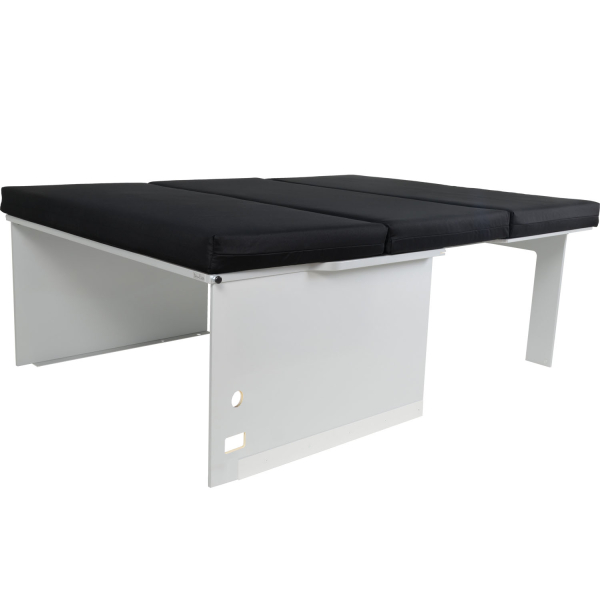

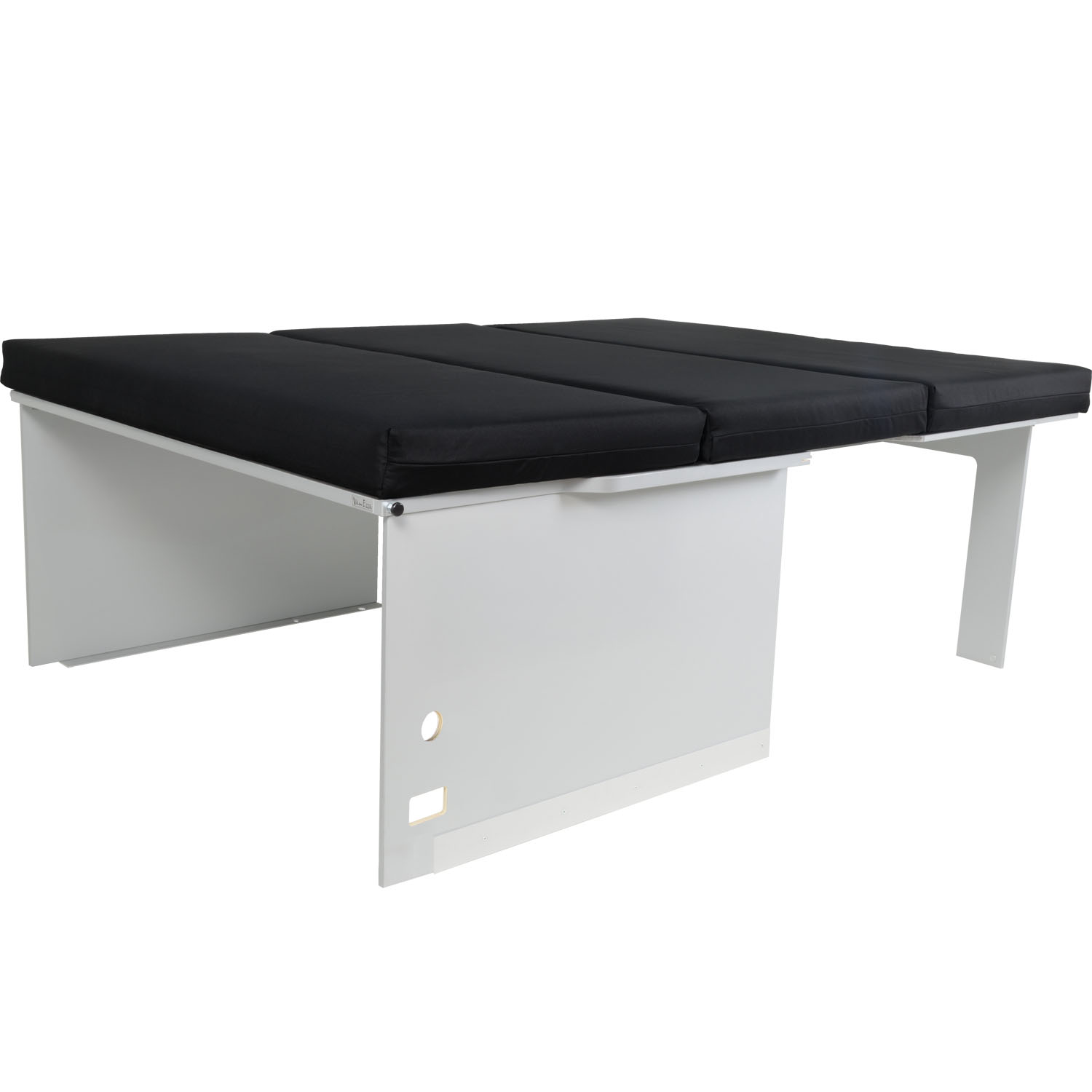

Total bed area / mattress size
Width 143 cm, length 189 cm, height 10 cm
2 single sleeping mattresses, 3-piece: width 72 cm each, length 189 cm, height 10 cm
Dimensions rear board
Depth 94 cm
Clearance height 53 cm

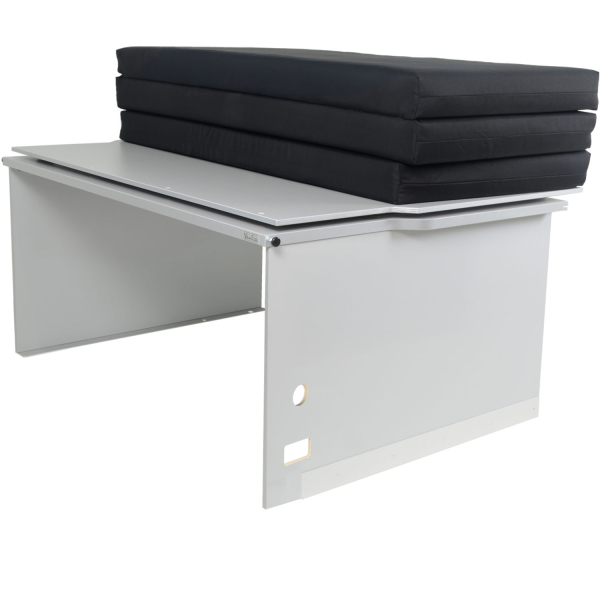

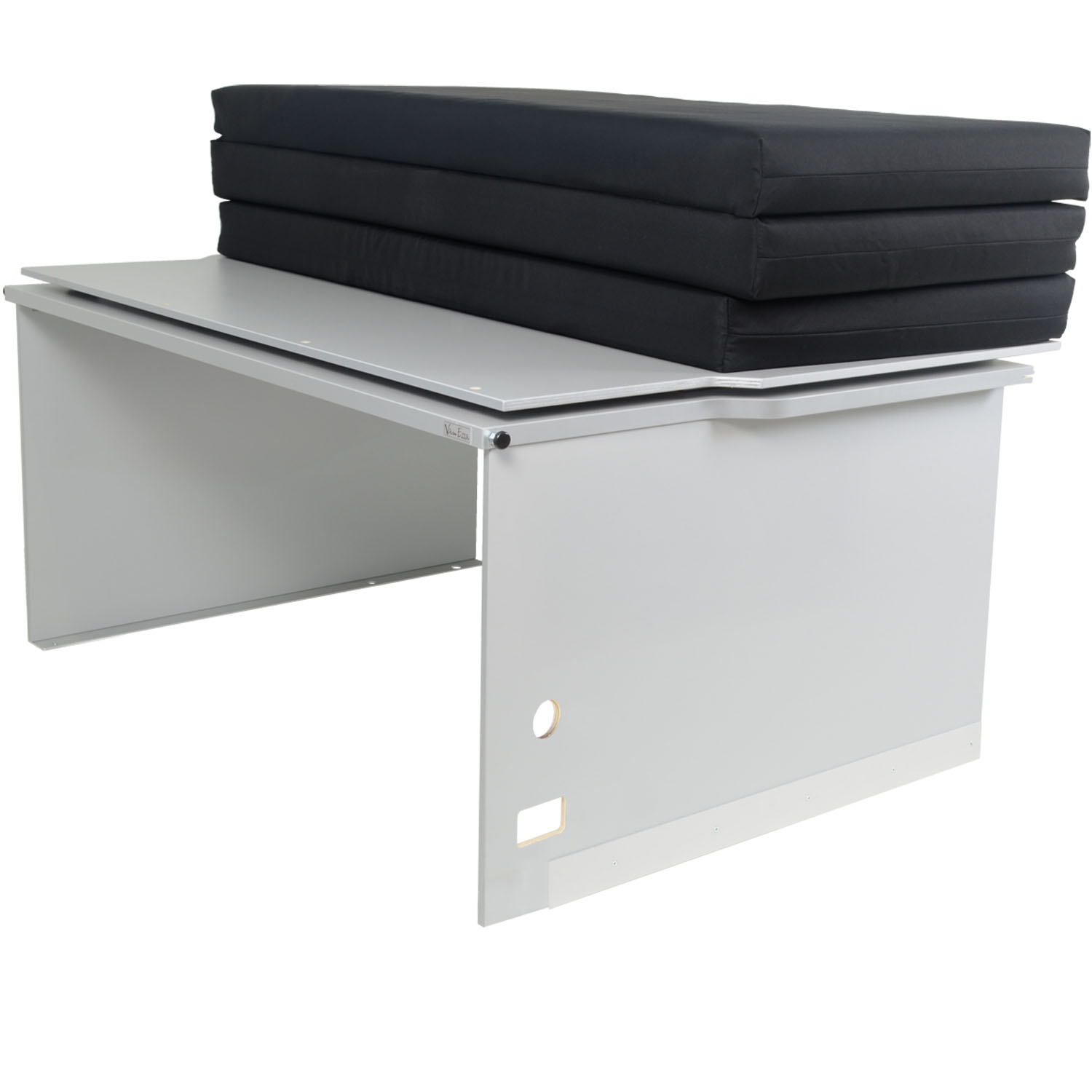

Packing dimensions
Sleeping system (without mattress) approx. width 137 cm, length 97 cm, height 10,5 cm
Each mattress folded approx. width 72 cm, length 63 cm, height 30 cm
Weight
Approx. 47 kg (sleeping system 33 kg +mattresses 2 x 7 kg)
Load capacity
Approx. 250 kg
- Foldable rear board
- 2 sleeping boards with folding supports
- 2 single mattresses
- Mounting set
