FROM YOUR T5/T6/T6.1 TO CAMPER - WITH VANESSA SLEEPING SYSTEM VAN IN MINUTES WITHOUT ANY EFFORT - AND THE IDEAL SUPPLEMENT TO THE KITCHEN.
Our Van sleeping system is perfectly suited for vans/caravans with a long wheelbase without a 3-seater bench seat.
It can be set up in just a few steps and with very flexible seat combinations:
- completely without rear seats
- or with a two-seater bench
- and/or with a single seat
(please note, among other things, the notes on shortening the bed and the additional support leg).
You remain completely flexible and can use the bed according to the situation. During the journey, the system rests in the luggage compartment. The passenger compartment and existing seats can be fully used.
Your van remains an everyday vehicle that can be converted into a motorhome as required.
Overview and advantages
- comfortable bed area as a double bed
- high-quality, comfortable COMFORT sleeping surface
- plenty of storage space
- quick and easy assembly and disassembly
- foldable mattress can be stored on the rear galley during the journey
Assembly
Fasten the rear kitchen in the boot of the vehicle using the original lashing strap eyelets.
Push the folding board forward, fix it to the rear kitchen and fold it out.
Stabilise with folding supports
Spread out the sleeping pad - done!
Variants
mandatory selection via dropdown:
Bed shortened to length 184 cmB
yes: Two-seater bench (with or without single seat) should be usable with the bed assembled OR:
no: Two-person bench/single seat are removed or can be used as bed support when folded down under the bed
Additional support leg
without additional support leg: no bed shortening, no 2nd row of seats in the vehicle
with additional support leg: no bed shortening, two-row bench remains in the vehicle without single seat
Please send us a picture of the opened boot of your van via picture upload (or by Email) to see the attachment points, seats etc. of your vehicle.
Also do so if you are unsure of the configuration.
Details
Material: poplar plywood with CPL coating (silver)
VanEssa care and cleaning instructions "furniture" VanEssa product and care info "mattress"Total bed area / mattress size
COMFORT Mattress,3 pcs, approx. width 143 cm, length 184 / 189 cm (depending on choice of length), height 10 cm

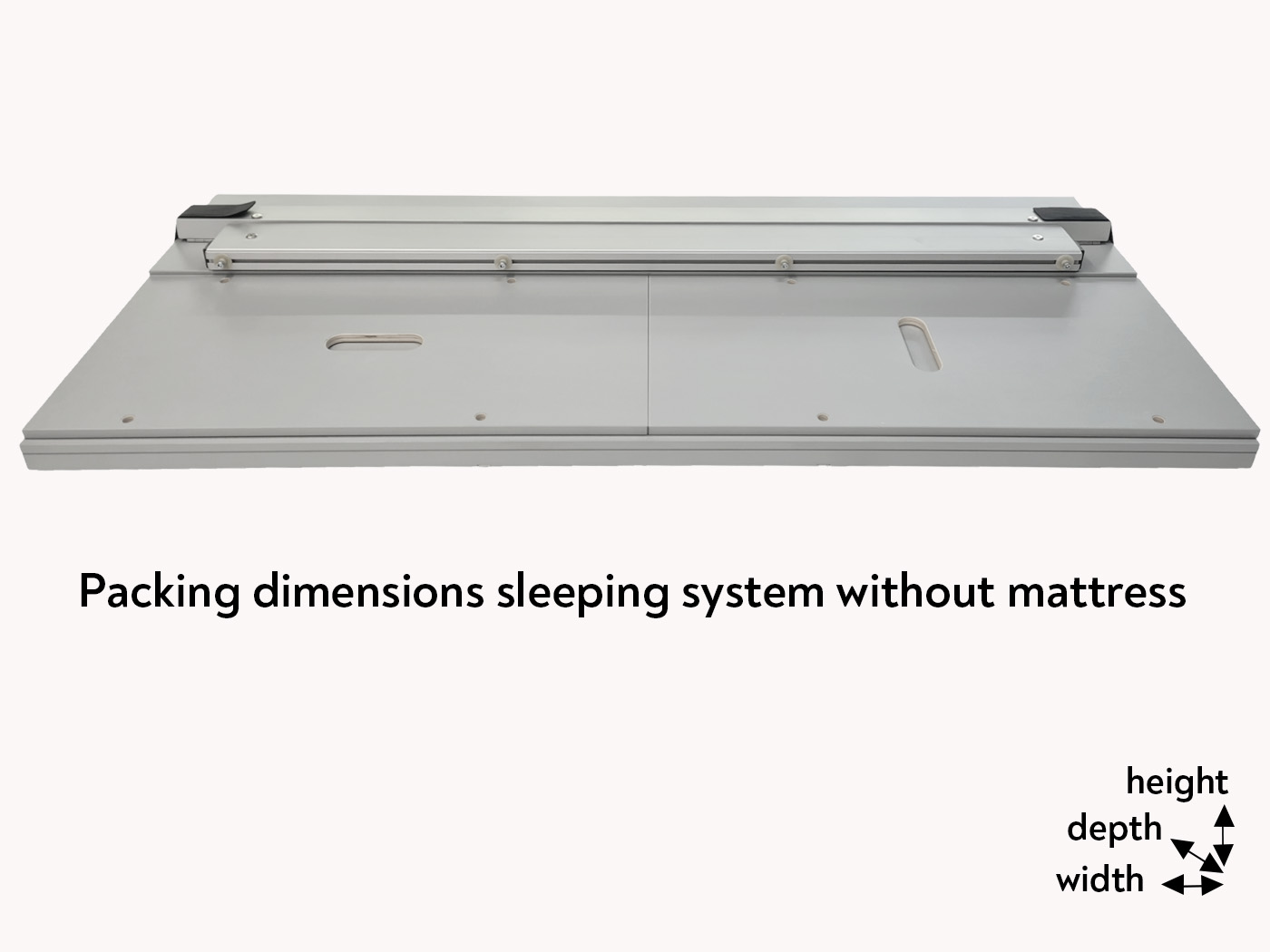

packing dimensions (expanded)
Sleeping System (without mattress) approx. width 137 cm, length 77 cm, height 7 cm
Mattress approx. width 143 cm, length 63 cm, height 30 cm
Weight:
28 kg (16 kg +mattress 12 kg)
Load capacity approx. 250 kg
Scope of supply
- 2-part folding board
- 2 folding brackets
- supporting bracket (in case of existance of 2-seated bench and in case of not shortening the length)
- 3-part COMFORT mattress: width 143 cm, length 184 or 189 cm, height 10 cm
- all mounting parts are included in delivery
